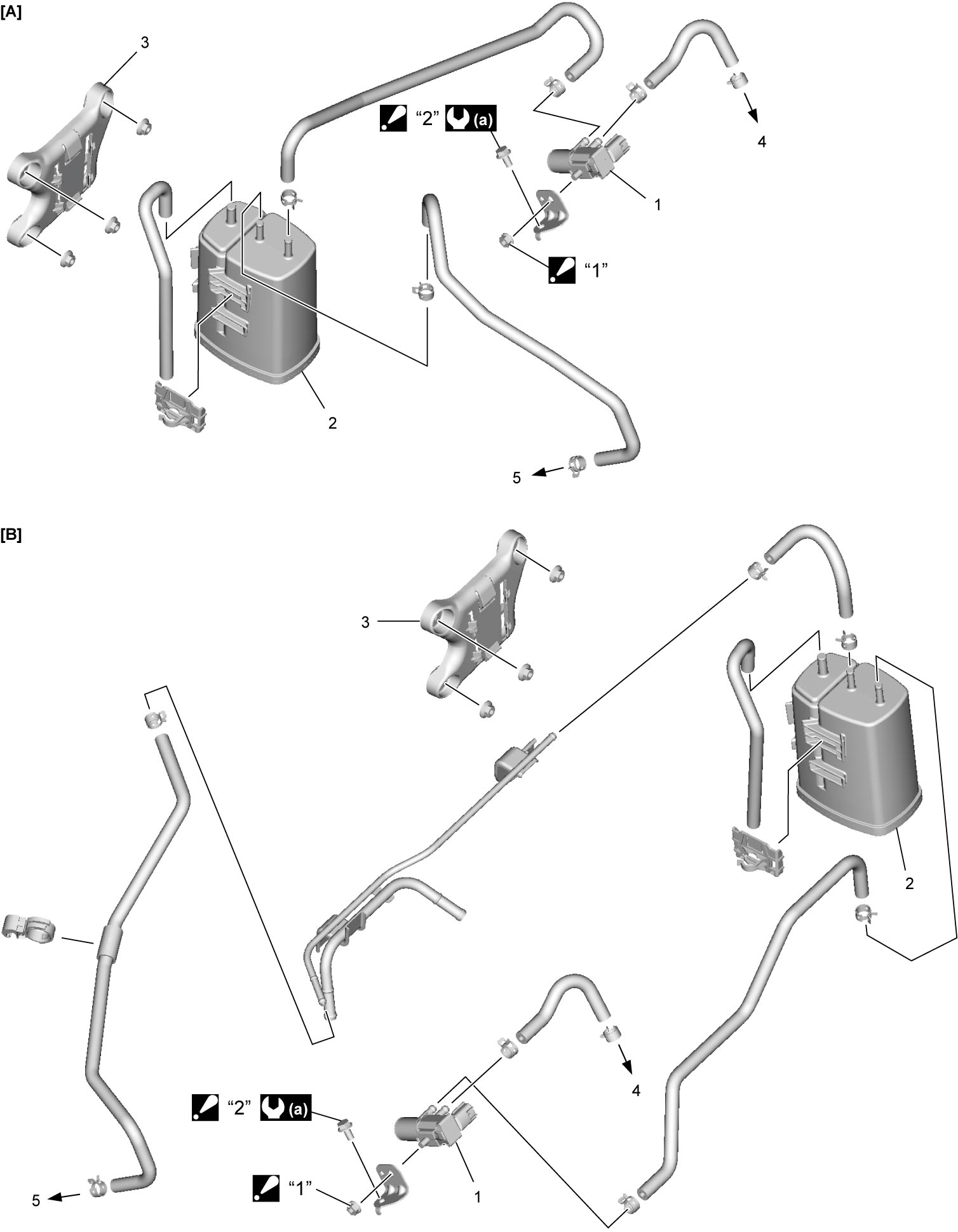

EVAP System Components
Precautions: General safety (00)
| [A]: | LHD | 2. | EVAP canister | 5. | To fuel tank |
| [B]: | RHD | 3. | EVAP canister bracket |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 1. | EVAP canister purge valve | 4. | To intake manifold |
 : |
Tightening order: “1” – “2” |
