MAP Sensor Removal and Installation
Precautions: General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove air cleaner assembly.
3)Disconnect connector from MAP sensor.

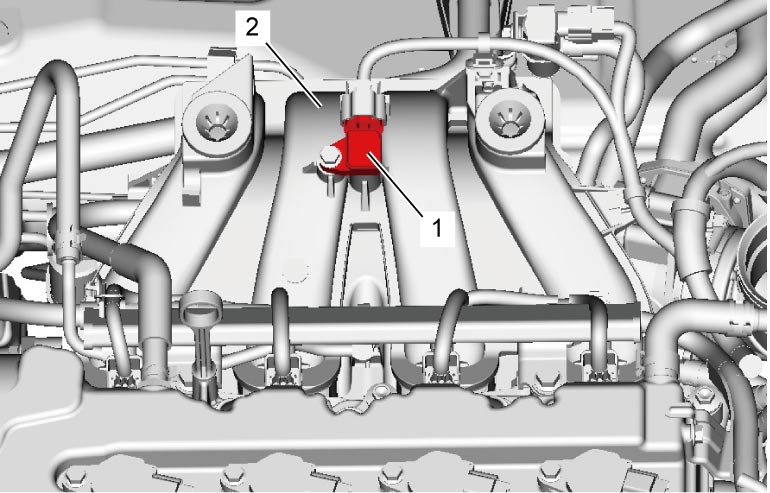

4)Remove MAP sensor (1) from intake manifold (2).
Installation
Reverse removal procedure noting the following point.
•Check that O-ring is free from damage.
