CMP Sensor Removal and Installation
Precautions: General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove air cleaner assembly and outlet hose.
3)Disconnect connector from CMP sensor.

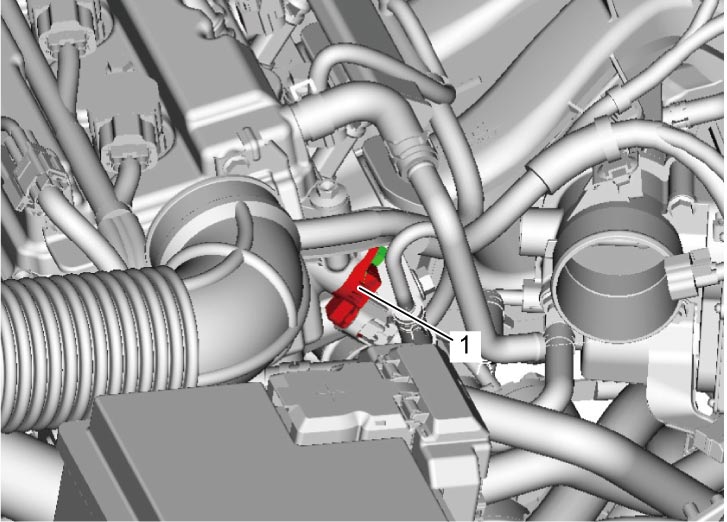

4)Remove CMP sensor (1) from cylinder head.
Installation
Reverse removal procedure noting the following point.
•Apply engine oil to O-ring of CMP sensor.
