IMT Valve Actuator Inspection
Precautions: General safety (00)
NOTICE:
The IMT valve actuator may be damaged if battery voltage is applied to it for longer than 10 seconds.
Limit the time of battery voltage application to the IMT valve actuator to less than 10 seconds.
1)Remove IMT valve actuator.

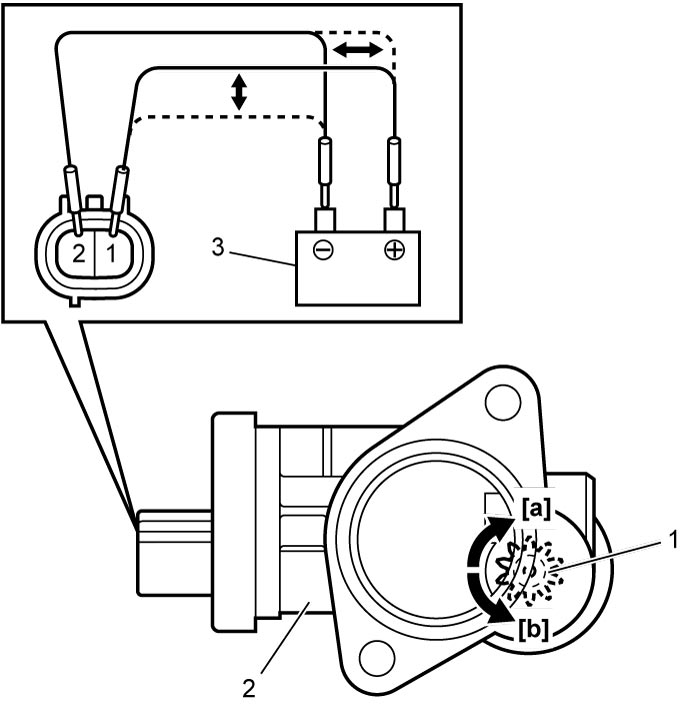

2)Connect battery positive (+) and negative (–) terminals to IMT valve actuator (2) as shown in table below. If pinion gear (1) does not operate in specified direction, replace IMT valve actuator.
| Rotative direction | Terminal | |
|---|---|---|
| “1” | “2” | |
| Clockwise | + | – |
| Counterclockwise | – | + |
| [a]: | Clockwise | 3. | Battery |
| [b]: | Counterclockwise |
