IMT Valve Actuator Removal and Installation

Removal

1)Disconnect negative (–) cable at battery.

2)Disconnect IMT valve actuator connector.

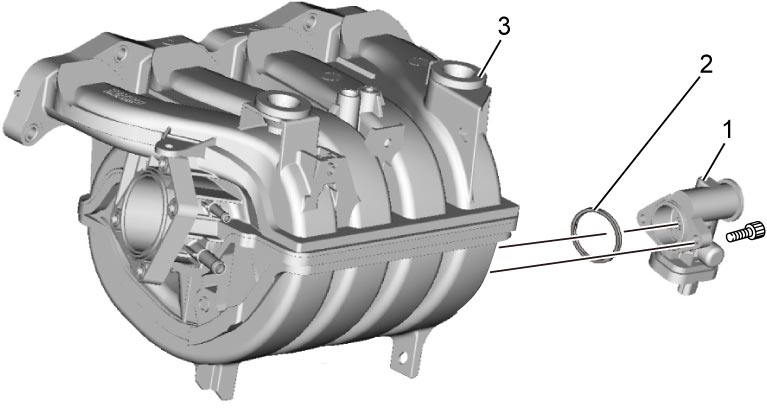

3)Remove IMT valve actuator (1) and O-ring (2) from intake manifold (3).

Installation

Reverse removal procedure noting the following points.

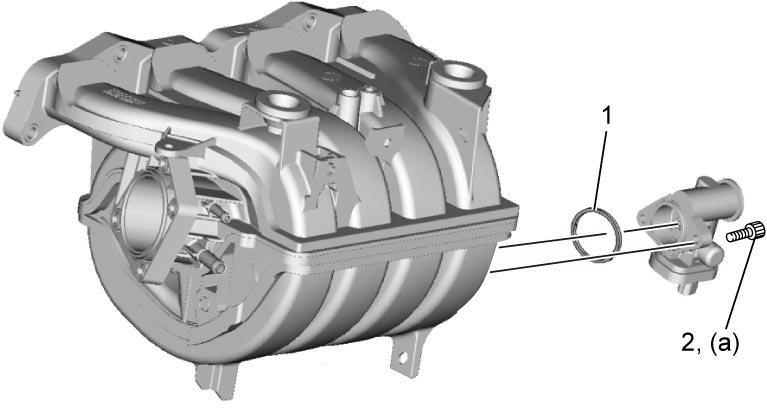

•Use new O-ring (1).
•Tighten IMT valve actuator bolts (2) to specified torque.

Tightening torque

IMT valve actuator bolt (a): 10 N·m (1.0 kgf-m, 7.5 lbf-ft)
