Oil Temperature Sensor Removal and Installation

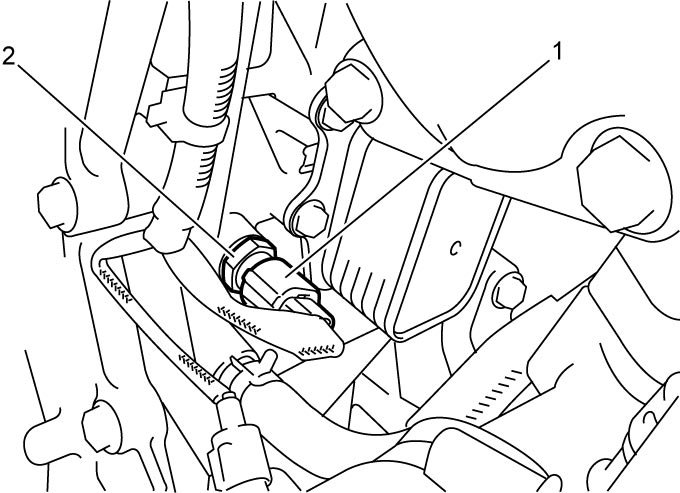

Removal

1)Disconnect negative (–) cable at battery.

2)Disconnect oil temperature sensor connector (1).

3)Remove oil temperature sensor (2) from cylinder block.

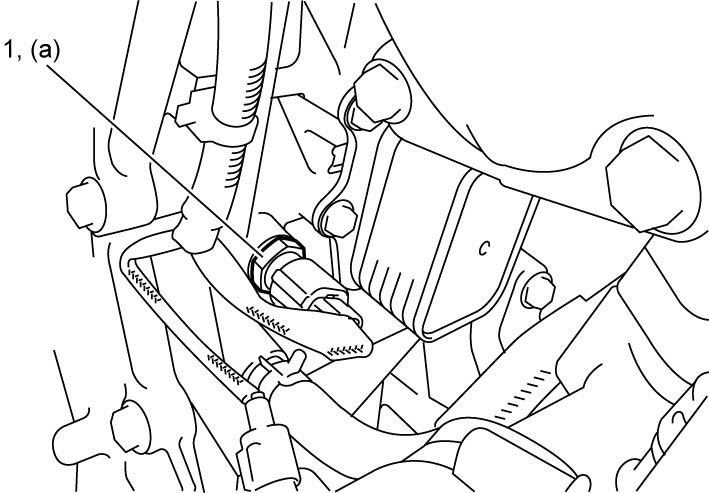

Installation

Reverse removal procedure noting the following point.

•Use new gasket.
•Tighten oil temperature sensor (1) to specified torque.

Tightening torque

Oil temperature sensor (a): 25 N·m (2.5 kgf-m, 18.5 lbf-ft)
