WGV-VSV Removal and Installation
Precautions: General safety (00)

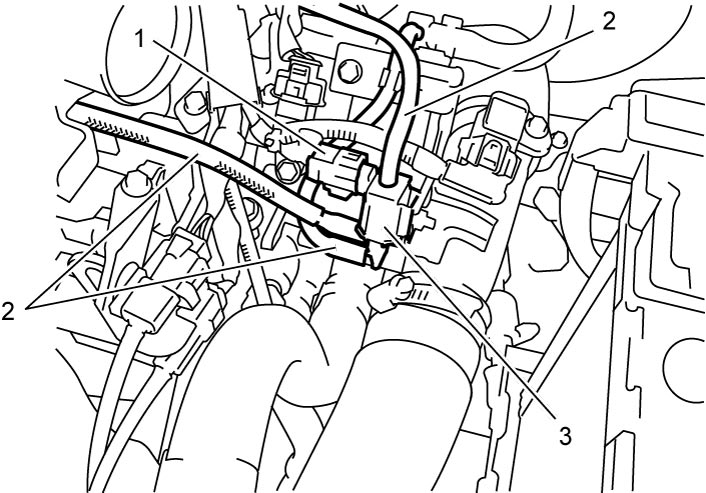

Removal
1)Disconnect negative (–) cable at battery.
2)Remove engine cover.
3)Disconnect WGV-VSV connector (1).
4)Disconnect vacuum hoses (2).
5)Remove WGV-VSV (3) from intercooler outlet pipe.
