Inlet Throttle Valve Inspection
Precautions: General safety (00)
Inlet Throttle Valve Motor

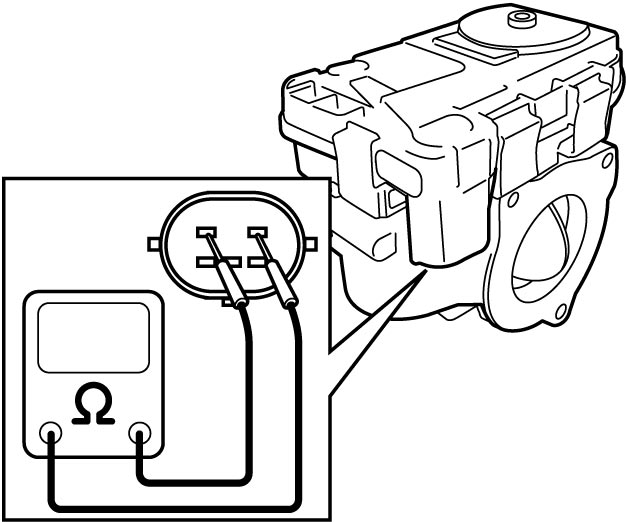

1)Check resistance between terminals of inlet throttle valve. If resistance is not as specified, replace inlet throttle valve.
Inlet throttle valve resistance
1.5 to 3.5 Ω at 20 °C (68 °F)
