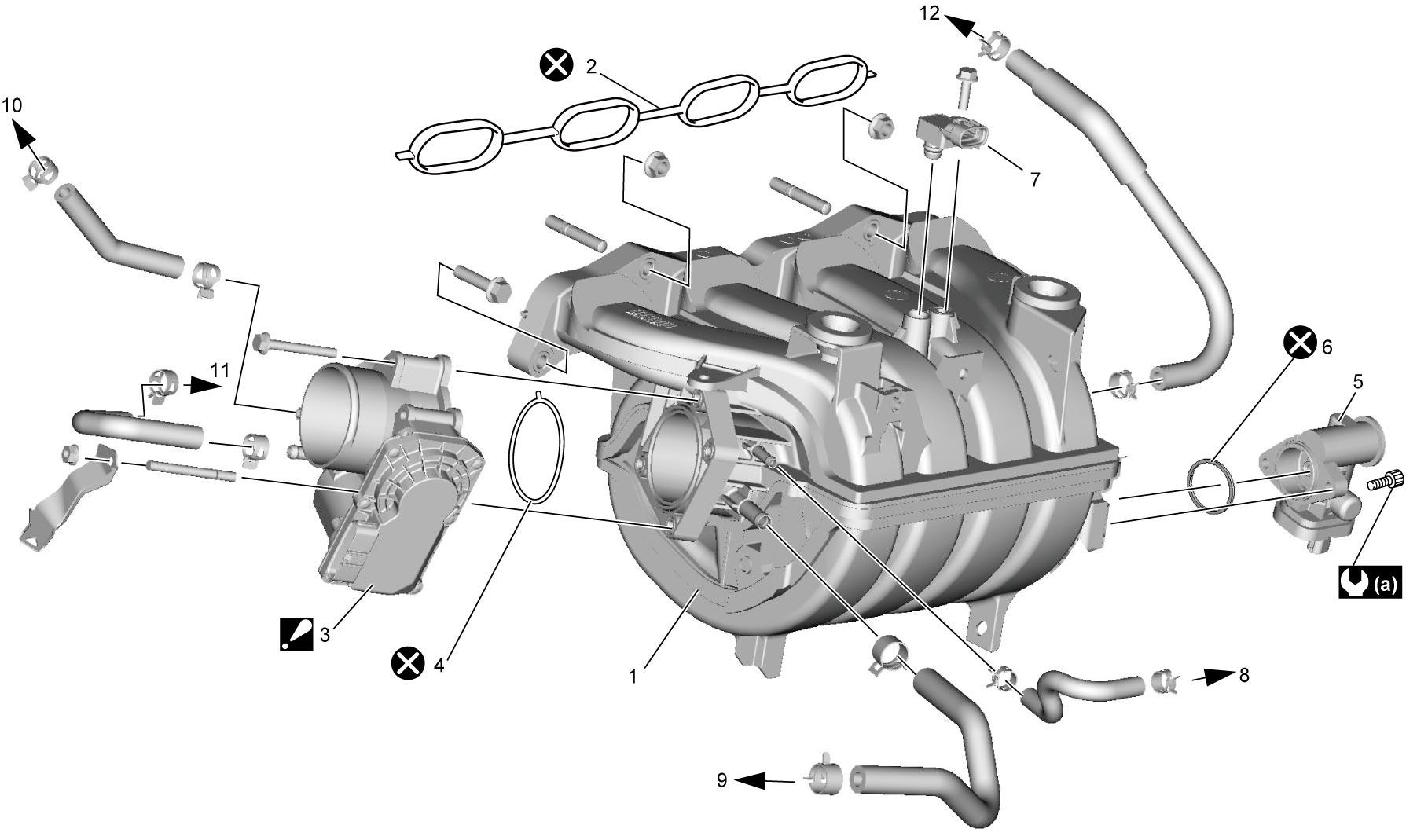

Throttle Body and Intake Manifold Components
Precautions: General safety (00)
| 1. | Intake manifold | 6. | O-ring | 11. | To cooling water pipe |
| 2. | Intake manifold gasket | 7. | MAP sensor | 12. | To PCV valve |
 3. |
Electric throttle body assembly : Do not disassemble. |
8. | To EVAP canister purge valve |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 4. | Electric throttle body gasket | 9. | To brake booster |
 : |
Do not reuse. |
| 5. | IMT valve actuator | 10. | To breather pipe |
