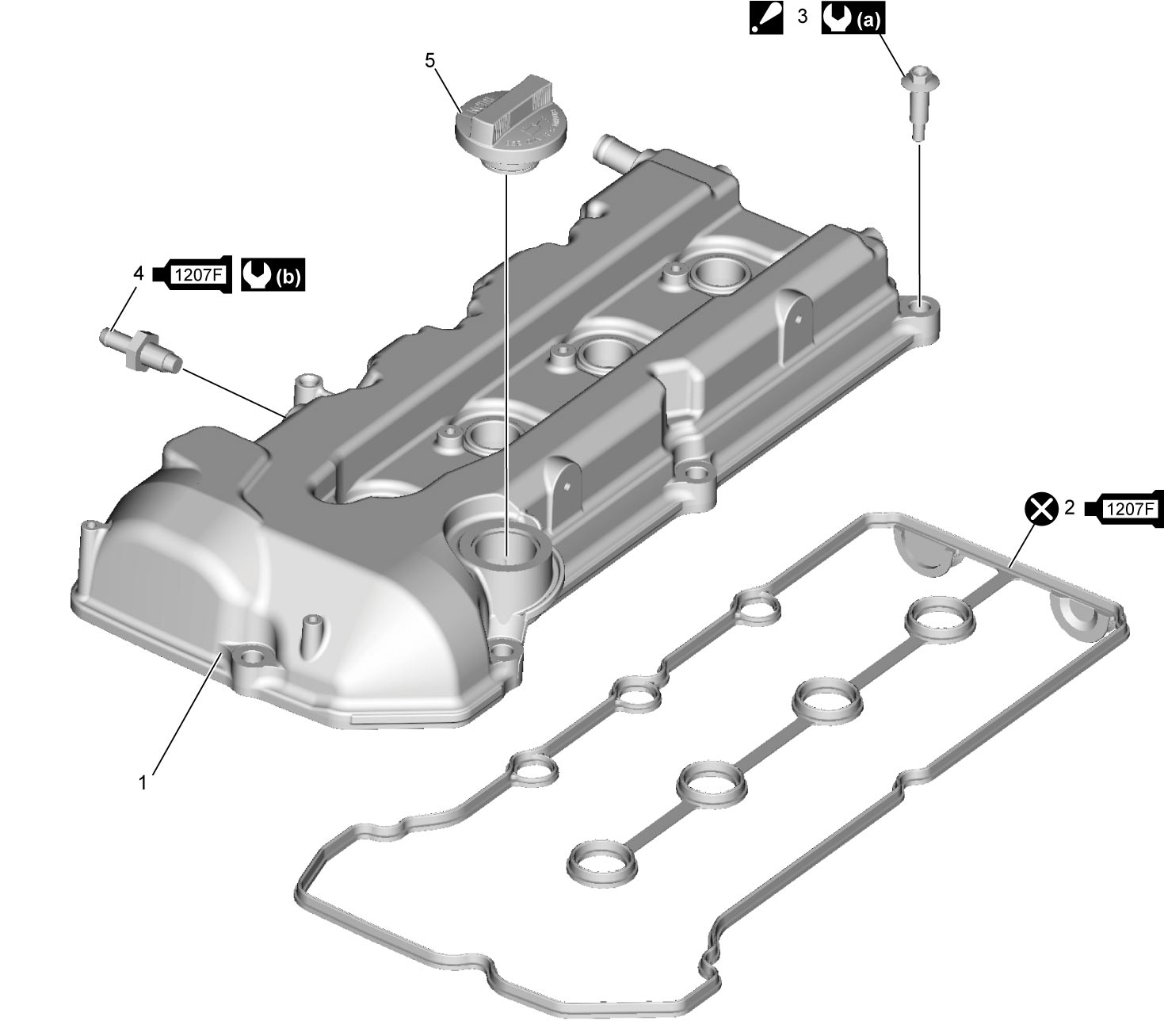

Cylinder Head Cover Components
Precautions: General safety (00)
| 1. | Cylinder head cover |
 4. |
PCV valve : Apply sealant 99000-31250 referring to Cylinder Head Cover Removal and Installation:M16A. |
 : |
27 N·m (2.8 kgf-m, 20.0 lbf-ft) |
|
2. |
Cylinder head cover gasket : Apply sealant 99000-31250 referring to Cylinder Head Cover Removal and Installation:M16A. |
5. | Oil filler cap |
 : |
Do not reuse. |
 3. |
Cylinder head cover bolt : For tightening order, refer to Cylinder Head Cover Removal and Installation:M16A. |
 : |
3.0 N·m → 5.0 N·m → 7.5 N·m (0.31 kgf-m → 0.51 kgf-m → 0.76 kgf-m, 2.5 lbf-ft → 4.0 lbf-ft → 5.5 lbf-ft) |
