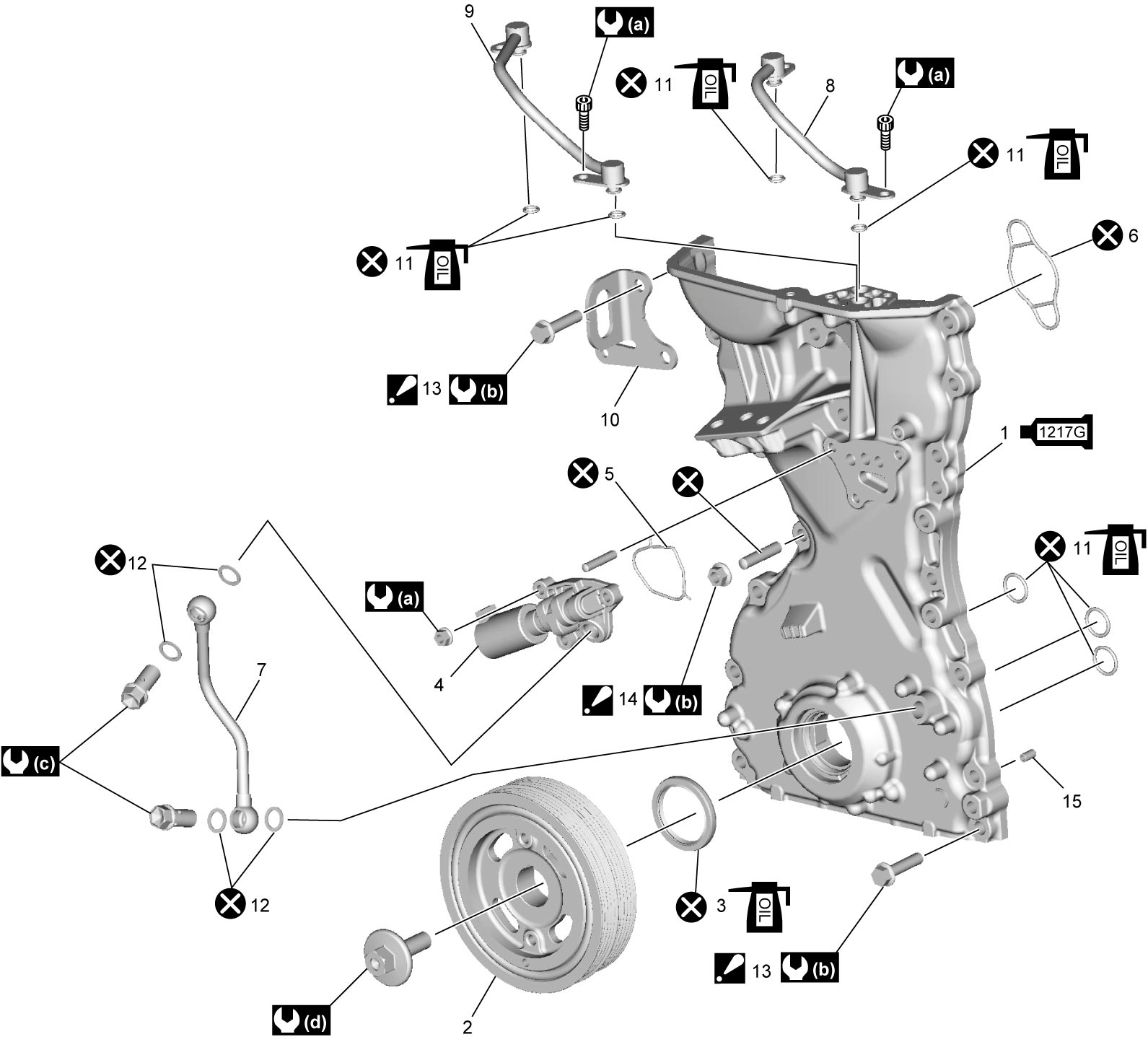

Timing Chain Cover Components
Precautions: General safety (00)
 1. |
Timing chain cover : Apply sealant 99000-31260. For details, refer to Timing Chain Cover Removal and Installation:M16A. |
8. | Oil gallery pipe No.2 | 15. | Dowel pin |
| 2. | Crankshaft pulley | 9. | Oil gallery pipe No.3 |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
 3. |
Oil seal : Apply engine oil to oil seal lip. |
10. | Engine hook |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 4. | OCV |
11. |
O-ring : Apply engine oil. |
 : |
30 N·m (3.1 kgf-m, 22.5 lbf-ft) |
| 5. | OCV gasket | 12. | Gasket |
 : |
150 N·m (15.3 kgf-m, 111.0 lbf-ft) |
| 6. | O-ring |
 13. |
Timing chain cover bolt : For tightening order, refer to Timing Chain Cover Removal and Installation:M16A. |
 : |
Do not reuse. |
| 7. | Oil gallery pipe No.1 |
14. |
Timing chain cover nut : For tightening order, refer to Timing Chain Cover Removal and Installation:M16A. |
