Timing Chain Cover Inspection
Precautions: General safety (00)
Oil Seal
Check oil seal lip for fault or other damage. Replace it if necessary.
Timing Chain Cover

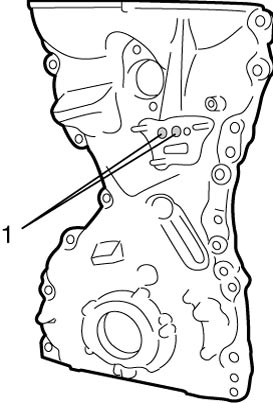

Check strainer (1) of oil passage for VVT actuator.
If clog or foreign material exists, clean strainer.
Oil Gallery Pipe

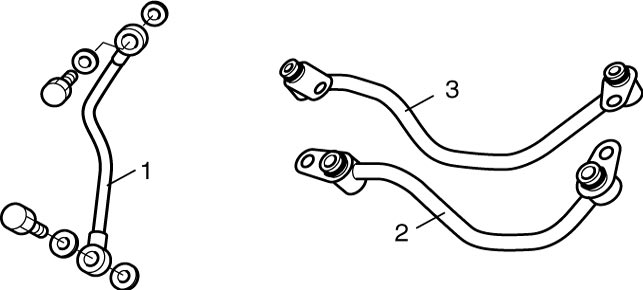

Check oil gallery pipes No.1 (1), No.2 (2) and No.3 (3).
Replace if crack, deformation or clog exists.
