Flywheel / Drive Plate Removal and Installation

Precautions: General safety (00)

Removal

1)For M/T model, remove clutch cover and clutch disc.

2)For A/T model, remove transaxle assembly.

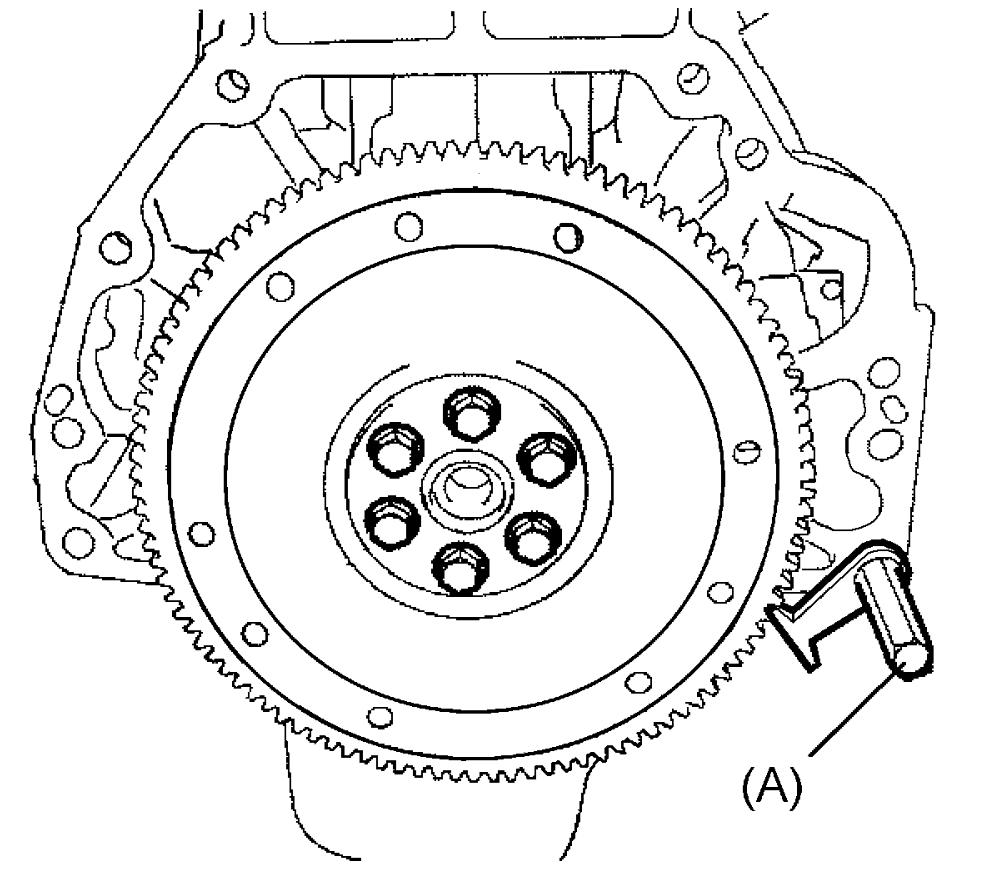

3)Install special tool to ring gear teeth to lock flywheel (M/T model) or drive plate (A/T model) as shown in figure.

Special Tool

(A): 09924–17811

4)Remove flywheel (M/T model) or drive plate (A/T model) from crankshaft.

5)For M/T model, remove input shaft bearing, if necessary.

Installation

Reverse removal procedure noting the following points.

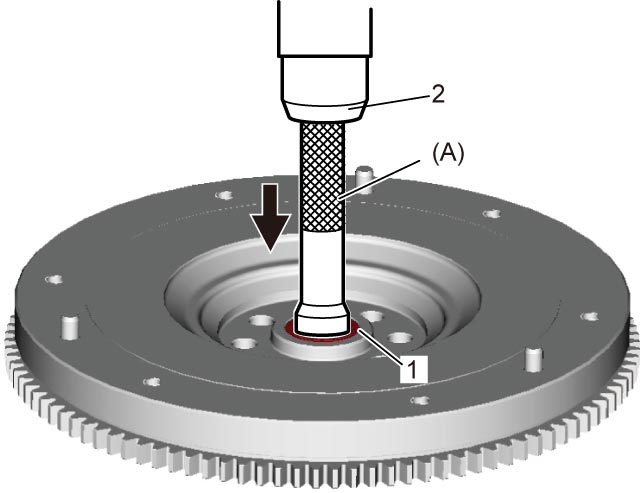

•For M/T model, press-fit input shaft bearing (1) using special tool and hydraulic press (2).

Special Tool

(A): 09913–75821

•Install new flywheel bolts (M/T model) or drive plate bolts (A/T model).

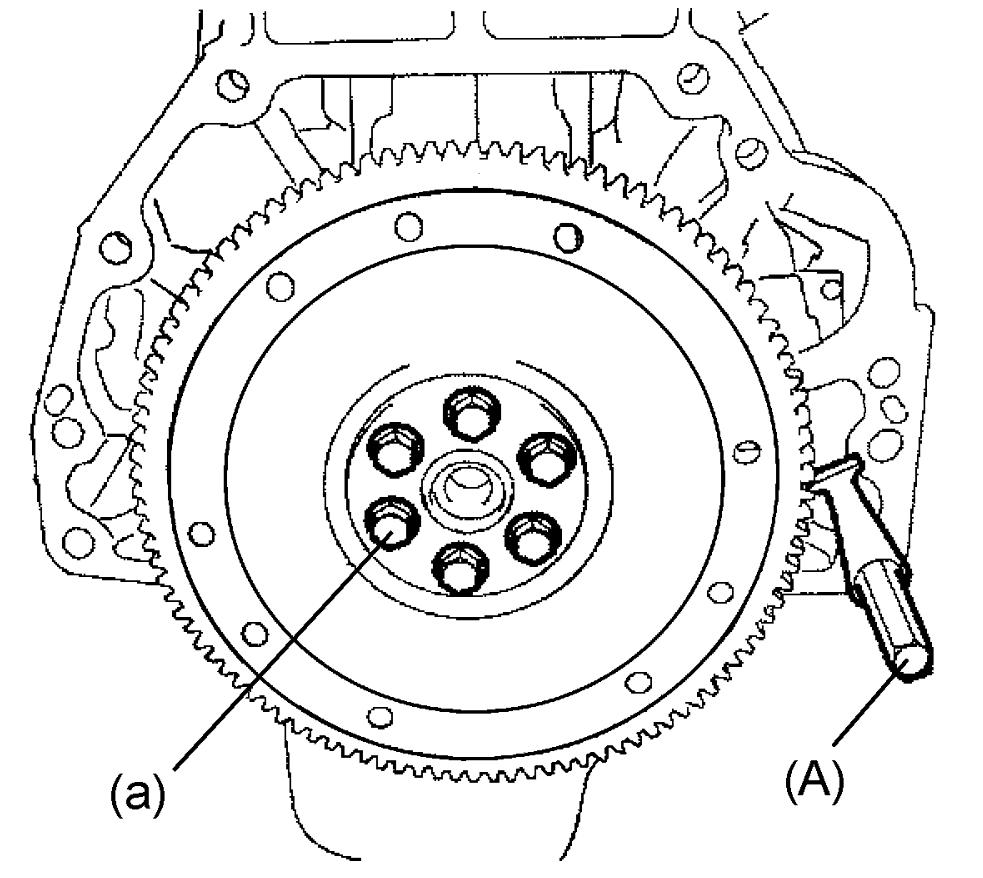

•Install special tool in ring gear teeth to lock flywheel (M/T model) or drive plate (A/T model) as shown in figure.

Special Tool

(A): 09924–17811

•Tighten flywheel bolts (M/T model) or drive plate bolts (A/T model) to specified torque.

Tightening torque

Flywheel bolt (a): 76 N·m (7.7 kgf-m, 56.0 lbf-ft)
Drive plate bolt (a): 75 N·m (7.6 kgf-m, 55.5 lbf-ft)
