Camshaft, Tappet and Shim Components
Precautions: General safety (00)

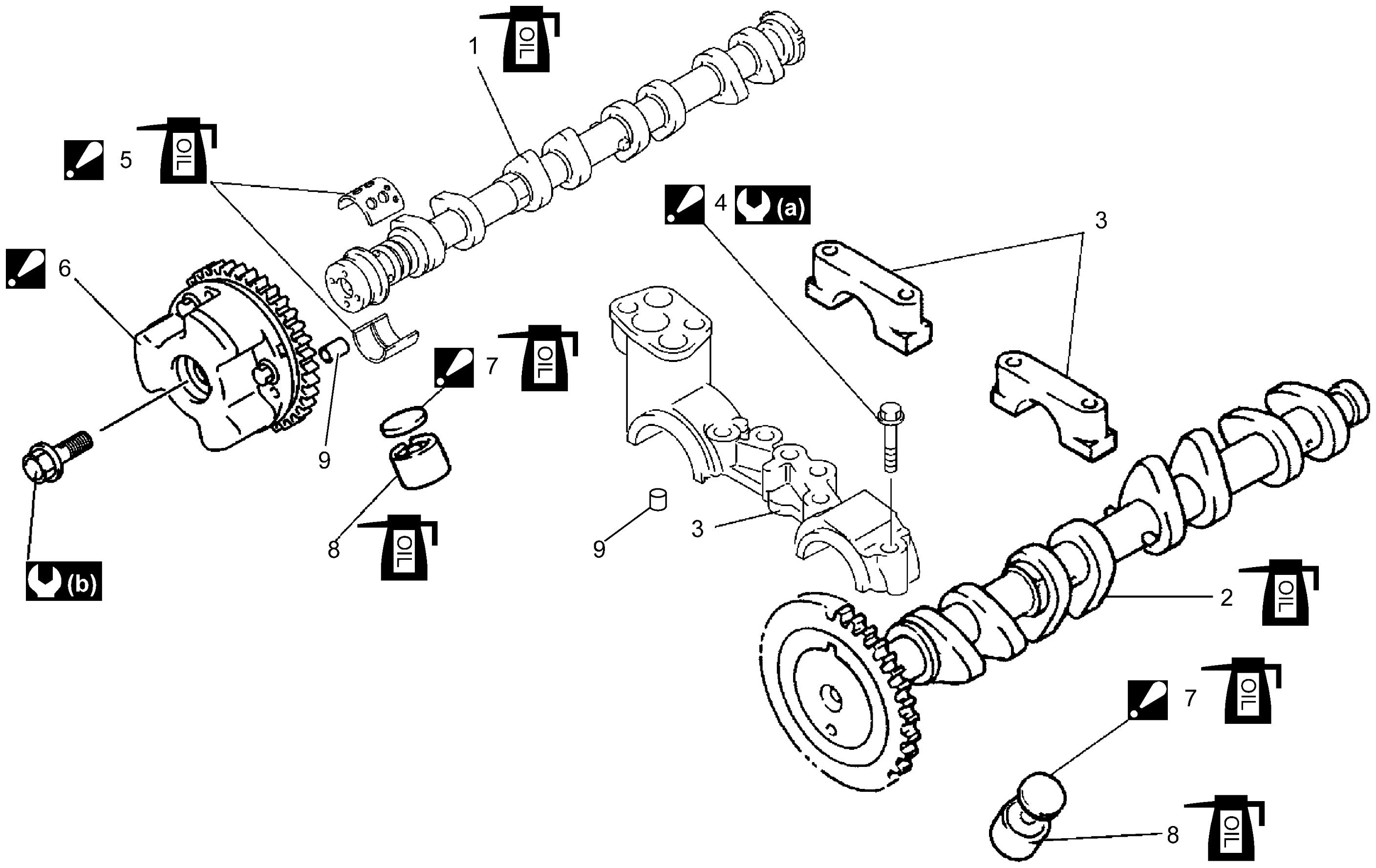

 1. |
Intake camshaft : Apply engine oil to sliding surface. |
 7. |
Shim : Shim No. on it faces tappet side. : Apply engine oil. |
|
2. |
Exhaust camshaft : Apply engine oil to sliding surface. |
8. |
Tappet : Apply engine oil to sliding surface. |
| 3. | Camshaft housing | 9. | Dowel pin |
|
4. |
Camshaft housing bolt : For tightening order, refer to Camshaft, Tappet and Shim Removal and Installation:M16A. |
 : |
5.0 N·m → 11 N·m (0.51 kgf-m → 1.1 kgf-m, 4.0 lbf-ft → 8.5 lbf-ft) |
|
5. |
Camshaft bearing : For applying engine oil, refer to Camshaft, Tappet and Shim Removal and Installation:M16A. |
 : |
59 N·m (6.0 kgf-m, 43.5 lbf-ft) |
|
6. |
VVT actuator : Do not disassemble. |
