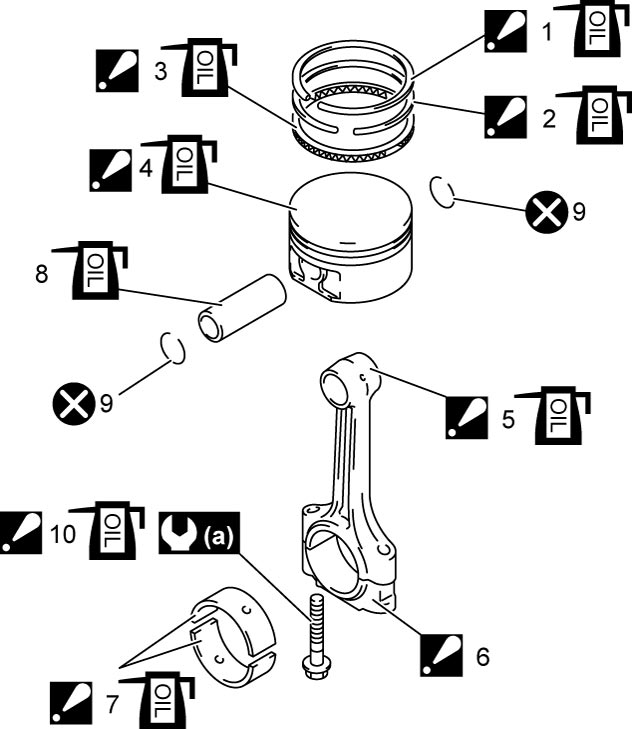

Piston, Piston Ring, Connecting Rod and Cylinder Components
Precautions: General safety (00)
  1. |
1st ring : For assembly, refer to Piston, Piston Ring, Connecting Rod and Cylinder Disassembly and Reassembly:M16A. : Apply engine oil to sliding surface. |
7. |
Connecting rod bearing : For applying engine oil, refer to Piston, Piston Ring, Connecting Rod and Cylinder Removal and Installation:M16A. |
|
2. |
2nd ring : For assembly, refer to Piston, Piston Ring, Connecting Rod and Cylinder Disassembly and Reassembly:M16A. : Apply engine oil to sliding surface. |
8. |
Piston pin : Apply engine oil to sliding surface. |
|
3. |
Oil ring : For assembly, refer to Piston, Piston Ring, Connecting Rod and Cylinder Disassembly and Reassembly:M16A. : Apply engine oil to sliding surface. |
9. | Piston pin circlip |
|
4. |
Piston : For assembly, refer to Piston, Piston Ring, Connecting Rod and Cylinder Removal and Installation:M16A. : Apply engine oil to sliding surface. |
10. |
Connecting rod bolt : Check connecting rod bolt for deformation to reuse.  : Apply engine oil to bolt thread and seat. : For tightening order, refer to Piston, Piston Ring, Connecting Rod and Cylinder Removal and Installation:M16A. |
|
|
Connecting rod : Do not apply engine oil to mating surface between connecting rod bearing and connecting rod. : Apply engine oil to sliding surface. |
 : |
15 N·m → +45° → +45° (1.5 kgf-m → +45° → +45°, 11.0 lbf-ft → +45° → +45°) |
|
6. |
Connecting rod bearing cap : To install connecting rod cap, direct arrow on it to crank pulley. : Do not apply engine oil to mating surface between connecting rod bearing and connecting rod cap. |
 : |
Do not reuse. |
