Intercooler Components
Precautions: General safety (00)

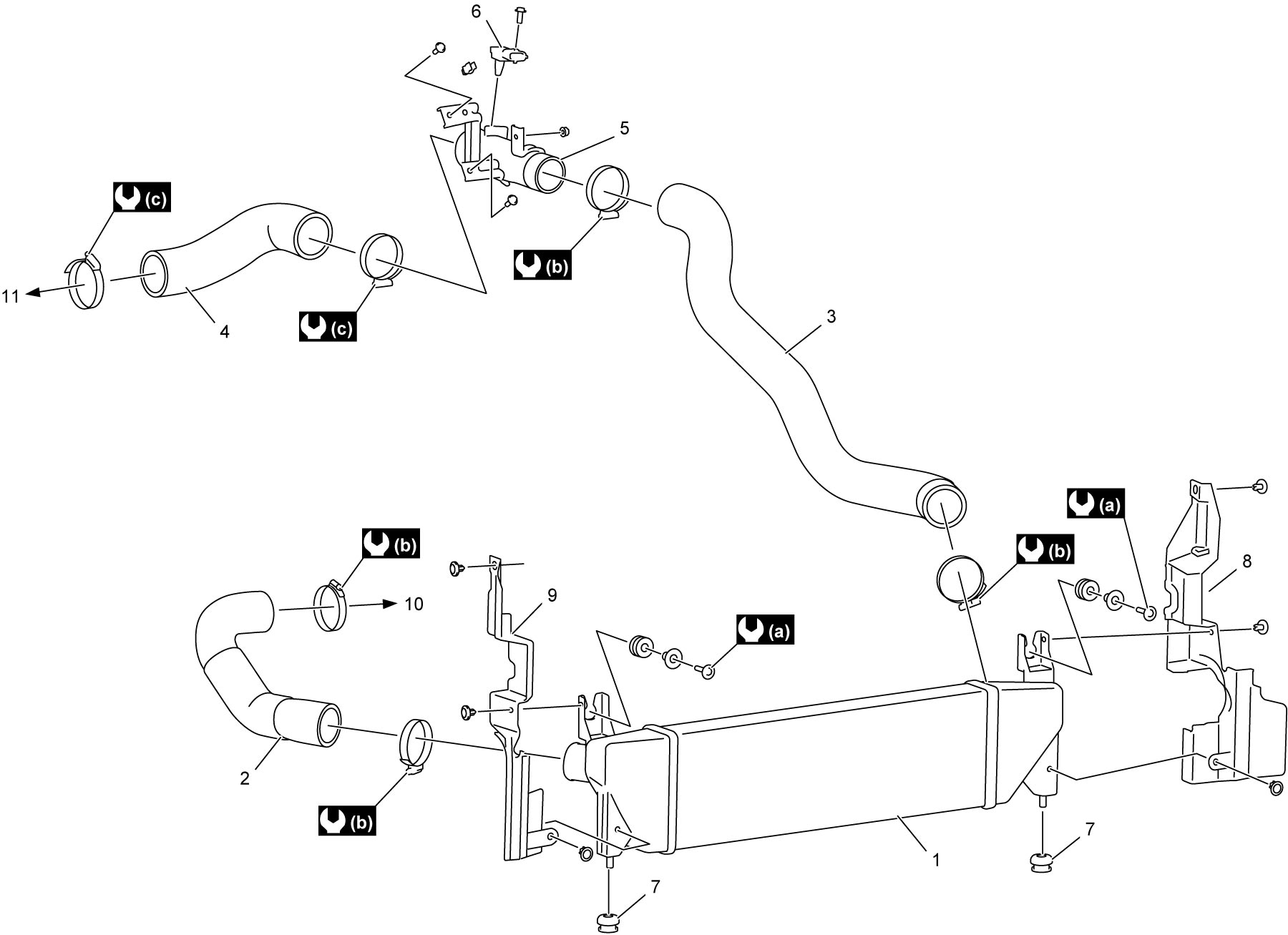

| 1. | Intercooler | 6. | Boost pressure sensor with IAT sensor-2 | 11. | To electric throttle body |
| 2. | Intercooler inlet hose | 7. | Intercooler grommet |
 : |
8.5 N·m (0.87 kgf-m, 6.5 lbf-ft) |
| 3. | Intercooler outlet hose No.1 | 8. | Intercooler left shroud |
 : |
4.5 N·m (0.46 kgf-m, 3.5 lbf-ft) |
| 4. | Intercooler outlet hose No.2 | 9. | Intercooler right shroud |
 : |
1.0 N·m (0.10 kgf-m, 1.0 lbf-ft) |
| 5. | Intercooler outlet pipe | 10. | To turbocharger outlet air pipe |
