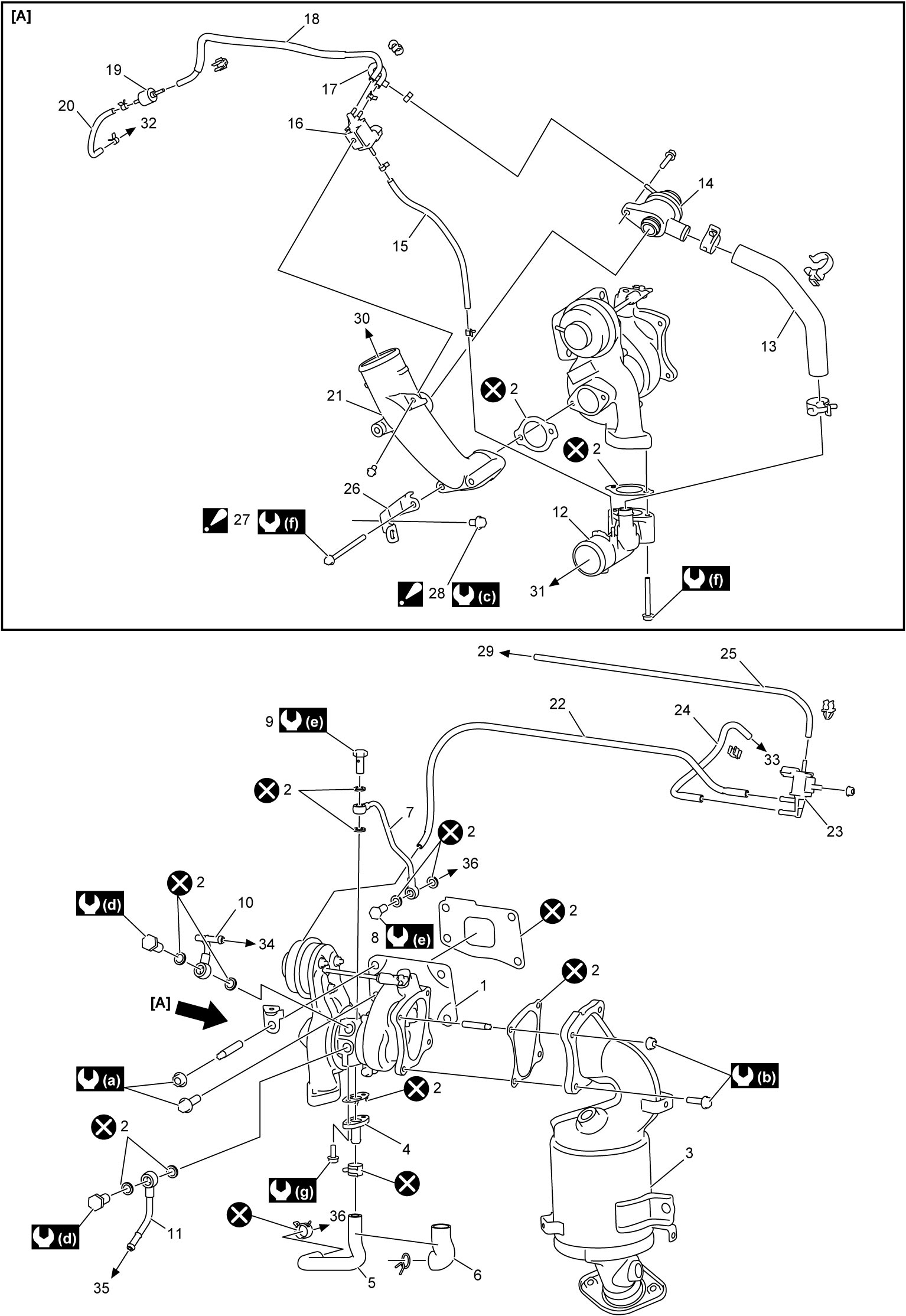

Turbocharger Components

1.	Turbocharger	16.	ABV-VSV	31.	To Intercooler inlet hose
2.	Gasket	17.	Air bypass valve control hose No.2	32.	To intake manifold
3.	Catalytic converter	18.	Air bypass valve control hose No.3	33.	To vacuum pump
4.	Oil drain joint	19.	Check valve	34.	To turbocharger water inlet hose
5.	Turbocharger oil drain hose	20.	Air bypass valve control hose No.4	35.	To turbocharger water outlet hose
6.	Protector	21.	Turbocharger inlet air pipe	36.	To cylinder block
7.	Turbocharger oil intake pipe	22.	Waste gate control hose No.1	:	55 N·m (5.6 kgf-m, 40.5 lbf-ft)
8.	Turbocharger oil intake pipe union bolt No.1	23.	WGV-VSV	:	40 N·m (4.1 kgf-m, 29.5 lbf-ft)
9.	Turbocharger oil intake pipe union bolt No.2	24.	Waste gate control hose No.2	:	29 N·m (3.0 kgf-m, 21.5 lbf-ft)
10.	Turbocharger water inlet pipe	25.	Waste gate control hose No.3	:	23 N·m (2.3 kgf-m, 17.0 lbf-ft)
11.	Turbocharger water outlet pipe	26.	Turbocharger inlet air pipe bracket	:	18 N·m (1.8 kgf-m, 13.5 lbf-ft)
12.	Turbocharger outlet air pipe	27.	Turbocharger inlet air pipe bolt : For tightening order, refer to Turbocharger Removal and Installation:K14C.	:	12 N·m (1.2 kgf-m, 9.0 lbf-ft)
13.	Air bypass valve inlet hose	28.	Turbocharger inlet air pipe bracket bolt : For tightening order, refer to Turbocharger Removal and Installation:K14C.	:	11 N·m (1.1 kgf-m, 8.5 lbf-ft)
14.	Air bypass valve	29.	To air cleaner assembly	:	Do not reuse.
15.	Air bypass valve control hose No.1	30.	To air cleaner outlet hose
