Check Valve Removal and Installation
Precautions: General safety (00)
Removal
1)Remove engine cover.

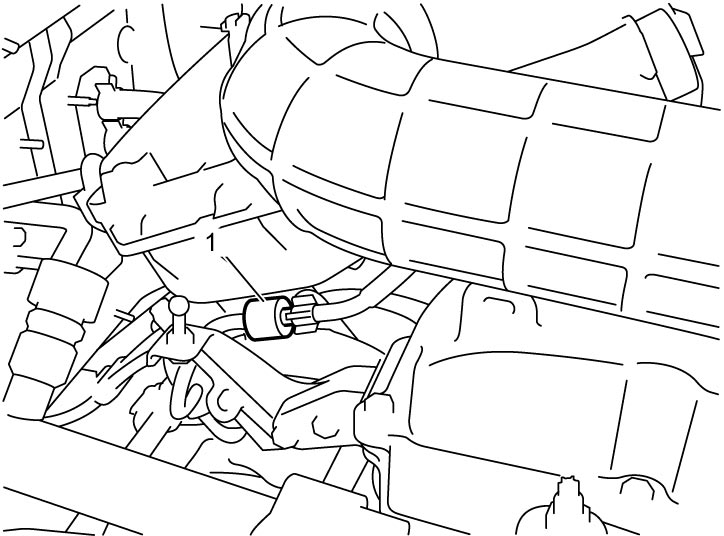

2)Remove check valve (1).
Installation
Reverse removal procedure noting the following point.

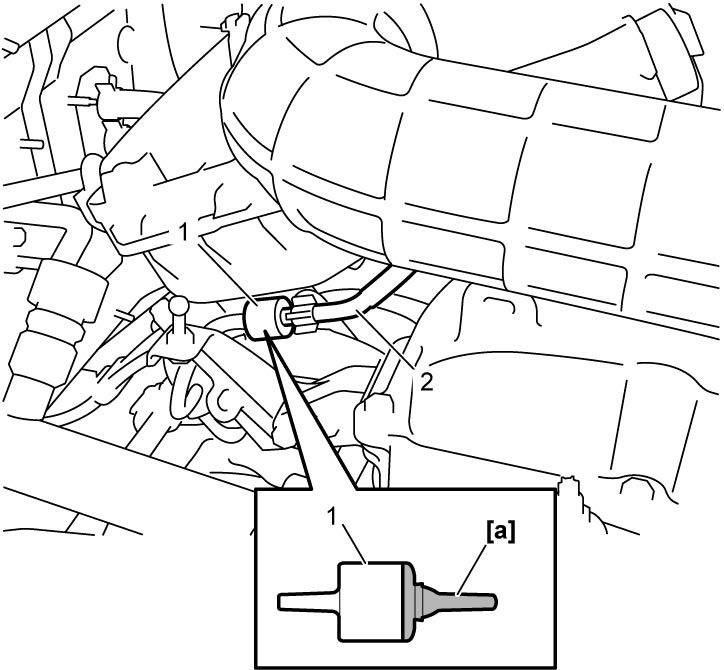

•Connect orange side [a] of check valve (1) to air bypass valve control hose No.3 (2).
