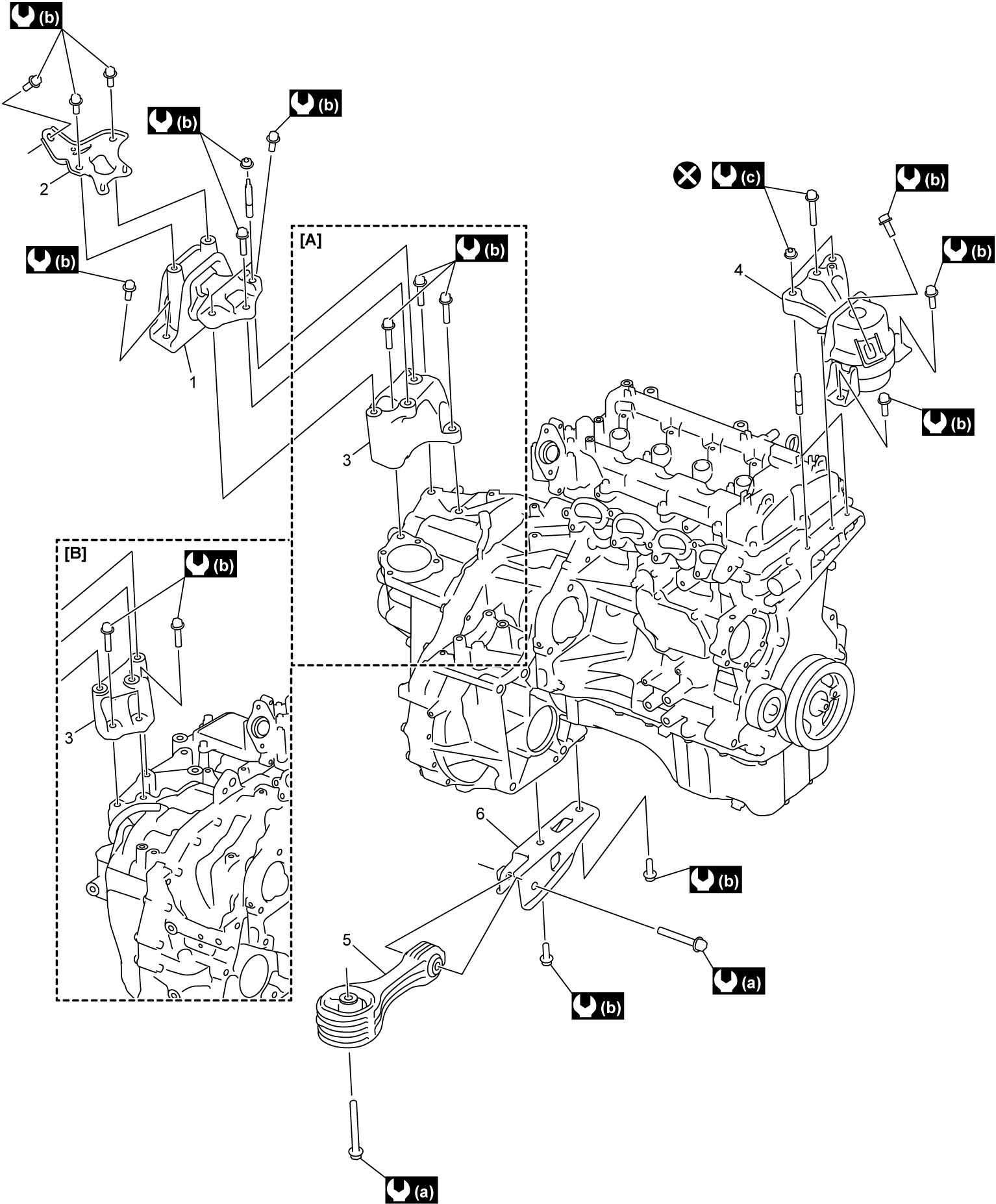

Engine Mounting Components
Precautions: General safety (00)
| [A]: | M/T model | 3. | Engine left mounting bracket |
 : |
93 N·m (9.5 kgf-m, 68.5 lbf-ft) |
| [B]: | A/T model | 4. | Engine right mounting |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 1. | Engine left mounting | 5. | Engine rear torque rod |
 : |
90 N·m (9.2 kgf-m, 66.5 lbf-ft) |
| 2. | Engine left mounting stiffener | 6. | Engine rear torque rod bracket |
 : |
Do not reuse. |
