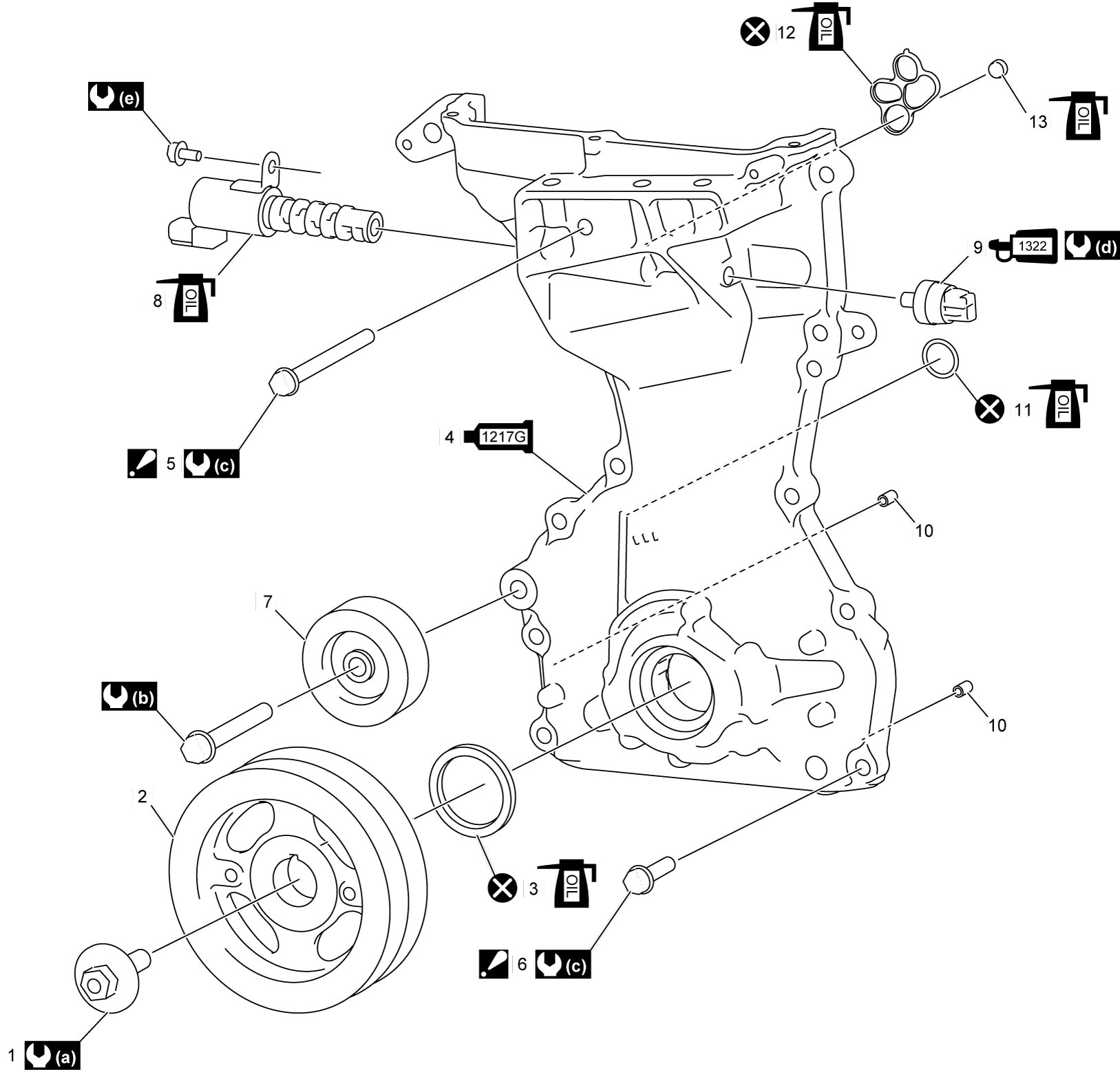

Timing Chain Cover Components
Precautions: General safety (00)
| 1. | Crankshaft pulley bolt |
 8. |
OCV : Apply engine oil to O-ring. |
 : |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 2. | Crankshaft pulley |
 9. |
Oil pressure switch : Apply sealant 99000-32150 to thread portion. |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
|
3. |
Oil seal : Apply engine oil to oil seal lip. |
10. | Dowel pin |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
 4. |
Timing chain cover : Apply 99000-31260. For details, refer to Timing Chain Cover Removal and Installation:K14C. |
11. |
Timing chain cover O-ring : Apply engine oil. |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
 5. |
Timing chain cover bolt No.1 For tightening order, refer to Timing Chain Cover Removal and Installation:K14C. |
12. |
Gasket : Apply engine oil. |
 : |
Do not reuse. |
|
6. |
Timing chain cover bolt No.2 For tightening order, refer to Timing Chain Cover Removal and Installation:K14C. |
13. | Filter | ||
| 7. | Water pump / generator drive belt tensioner pulley |
 : |
150 N·m (15.3 kgf-m, 111.0 lbf-ft) |
