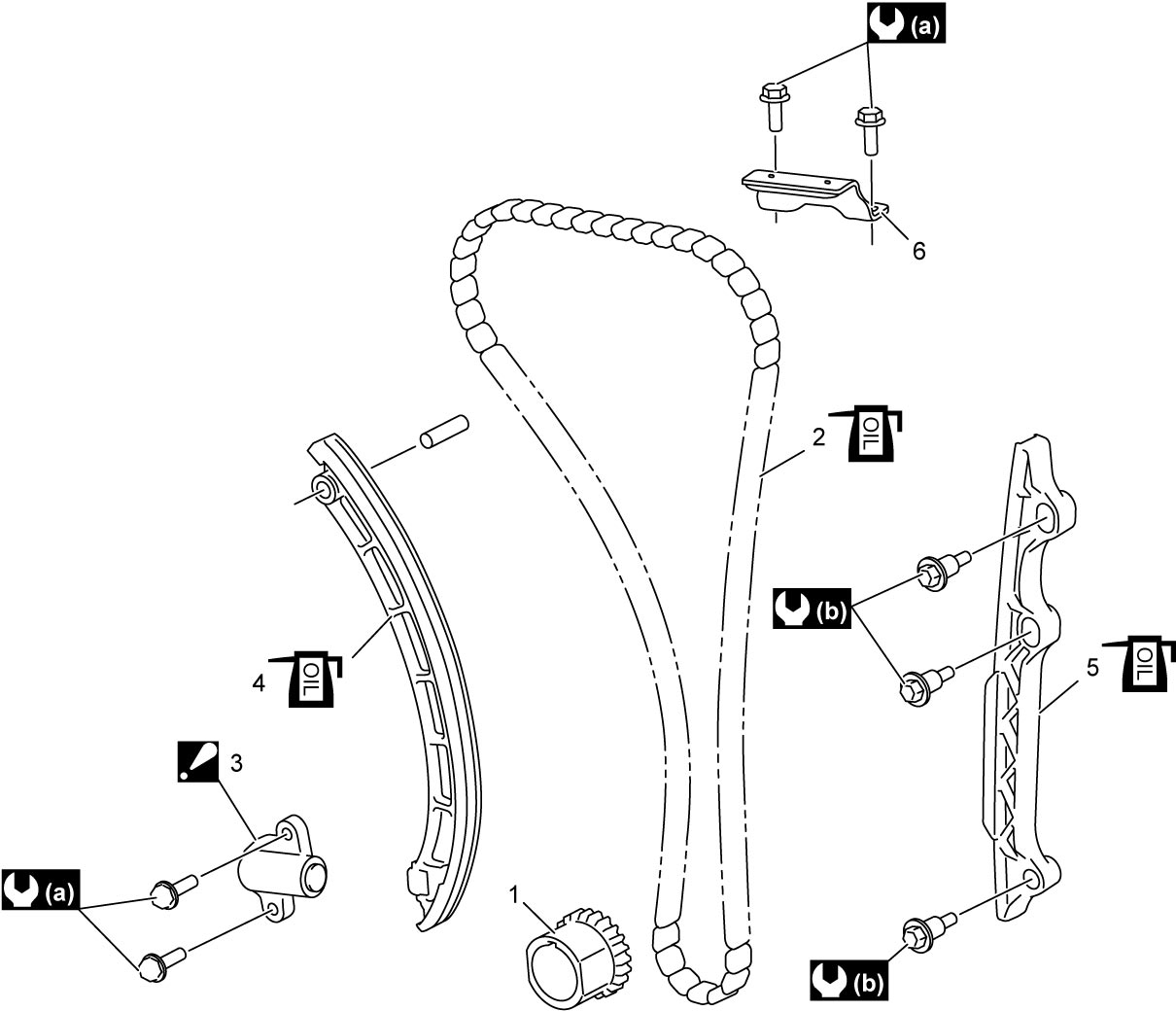

Timing Chain and Chain Tensioner Components

Precautions: General safety (00)

1.	Crankshaft timing sprocket	4.	Timing chain tensioner : Apply engine oil to sliding surface.	:	11 N·m (1.1 kgf-m, 8.5 lbf-ft)
2.	Timing chain : Apply engine oil.	5.	Timing chain guide No.1 : Apply engine oil to sliding surface.	:	9.0 N·m (0.92 kgf-m, 7.0 lbf-ft)
3.	Timing chain tensioner adjuster : For installation, refer to Timing Chain and Chain Tensioner Removal and Installation:K14C.	6.	Timing chain guide No.2
