Valve Rocker Arm Inspection
Precautions:
General safety (00)

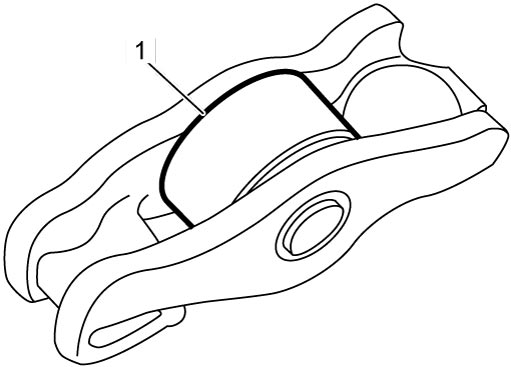

Check valve rocker arm roller (1) for smooth rotation and arm body for wear, rust, distortion or other damage. If any abnormality is found, replace the valve rocker arm(s).
