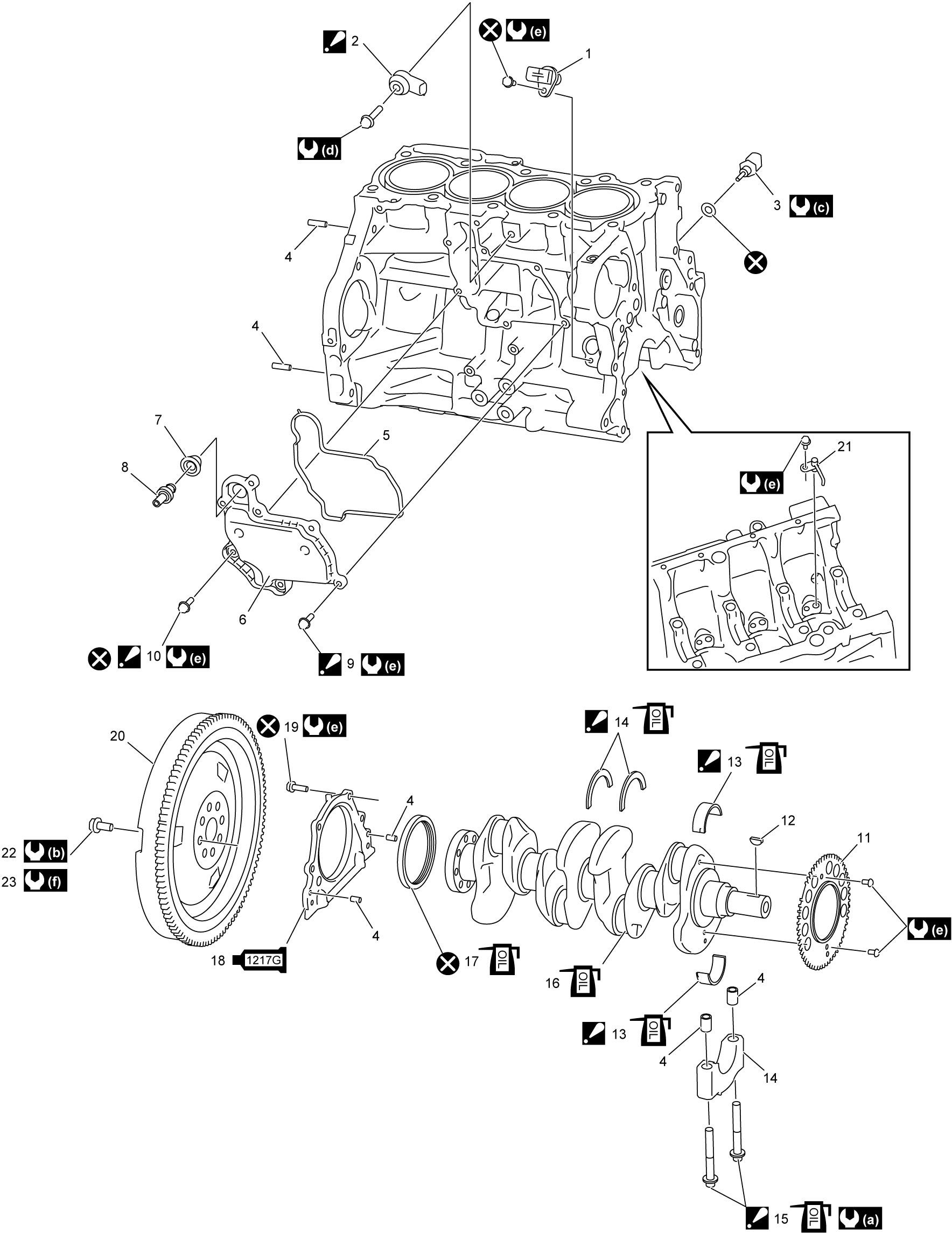

Main Bearing, Crankshaft and Cylinder Block Components

1.	CKP sensor	11.	Sensor plate	21.	Piston cooling jet
2.	Knock sensor : For removal and installation, refer to Knock Sensor Removal and Installation:K14C.	12.	Crankshaft timing sprocket key	22.	Flywheel bolt (M/T model)
3.	Oil temperature sensor	13.	Main bearing : For applying engine oil, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:K14C.	23.	Drive plate bolt (A/T model)
4.	Dowel pin	14.	Thrust bearing : Install thrust bearing with oil grooves facing out. : Apply engine oil to sliding surface.	:	20 N·m → 40 N·m → +60° → (2.0 kgf-m → 4.1 kgf-m → +60°, 15.0 lbf-ft → 29.5 lbf-ft → +60°)
5.	Gasket	15.	Main bearing cap bolt : Apply engine oil to bolt thread and seat. : For tightening order, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:K14C.	:	20 N·m → +34° (2.0 kgf-m → +34°, 15.0 lbf-ft → +34°)
6.	Breather plate	16.	Crankshaft : Apply engine oil to sliding surface.	:	25 N·m (2.5 kgf-m, 18.5 lbf-ft)
7.	PCV valve seal	17.	Rear oil seal : Apply engine oil to seal lip.	:	23 N·m (2.3 kgf-m, 17.0 lbf-ft)
8.	PCV valve	18.	Oil seal housing : Apply sealant 99000-31260 referring to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:K14C.	:	11 N·m (1.1 kgf-m, 8.5 lbf-ft)
9.	Breather plate bolt No.1 : For tightening order, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:K14C.	19.	Oil seal housing bolt	:	75 N·m (7.6 kgf-m, 55.5 lbf-ft)
10.	Breather plate bolt No.2 : For tightening order, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:K14C.	20.	Flywheel (M/T model) or drive plate (A/T model)	:	Do not reuse.
