Cylinder Block Inspection

Distortion of Gasket Surface

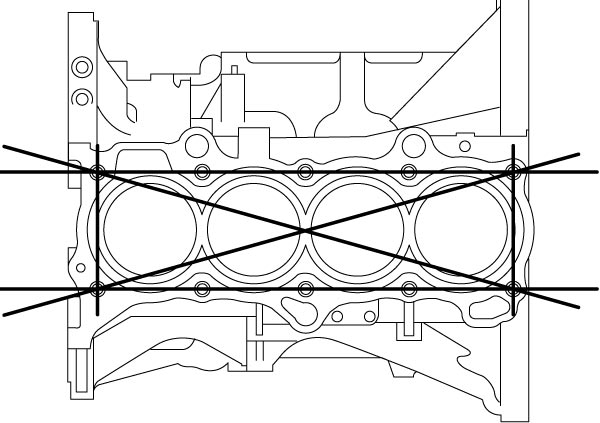

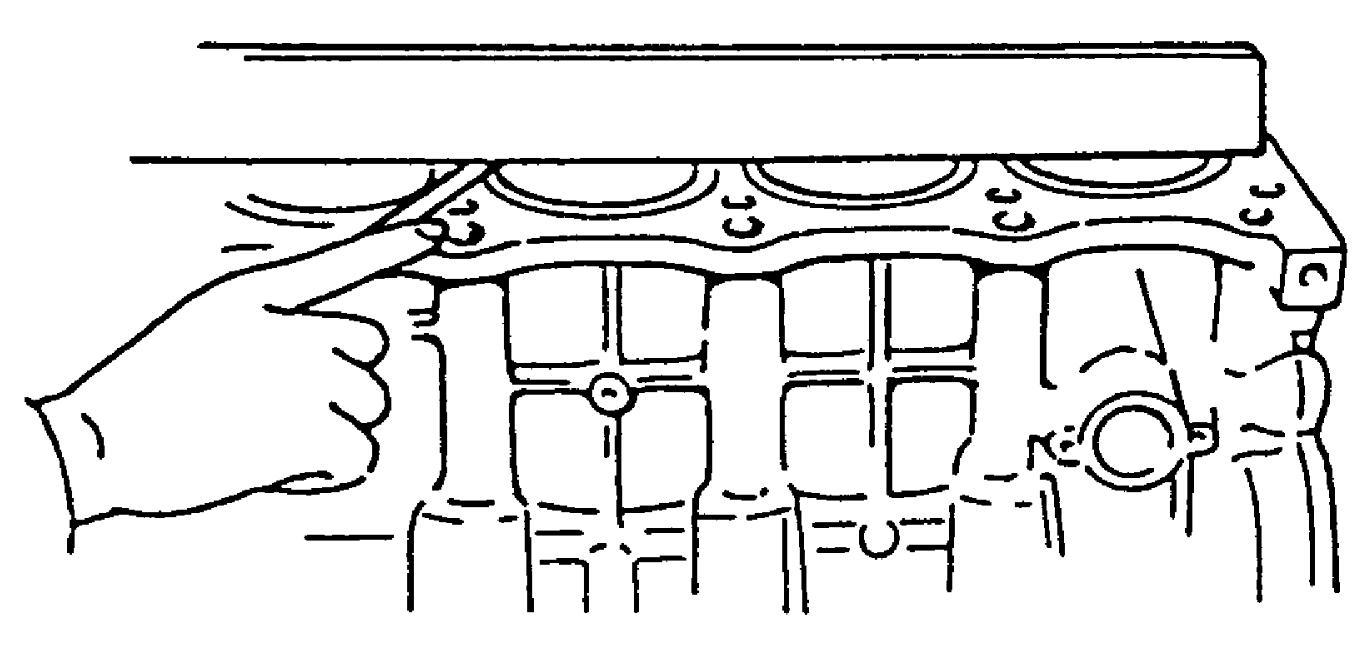

Using straightedge and feeler gauge, check gasket surface for distortion. If distortion exceeds its limit, repair it.

If repair is not possible, replace cylinder block.

Cylinder block flatness

Limit: 0.03 mm (0.0012 in.)
