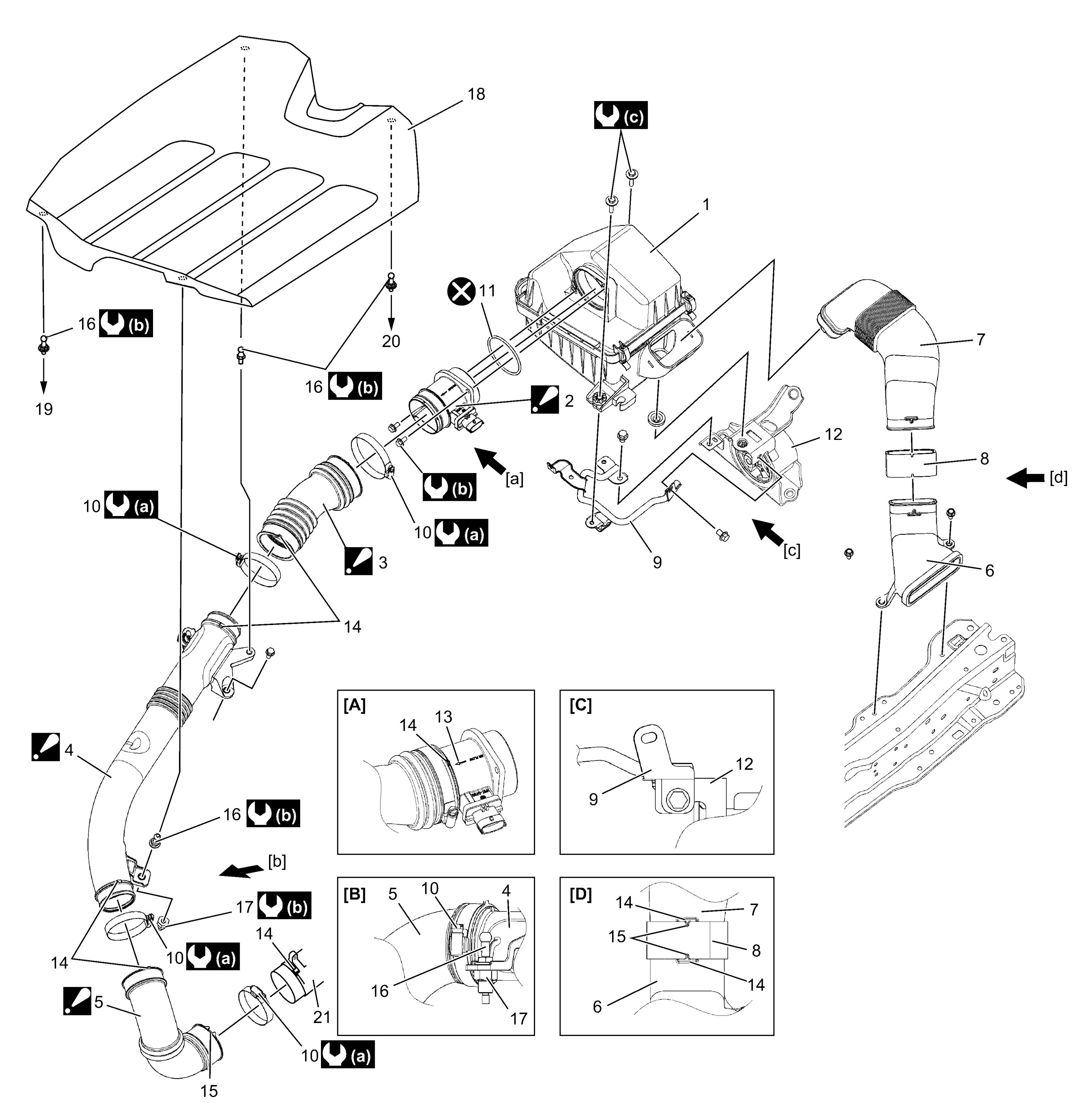

Air Cleaner Components
Precautions: General safety (00)
| [A]: | View: [a] | 7. | Air cleaner suction No.2 pipe | 17. | Engine cover spacer |
| [B]: | View: [b] | 8. | Air cleaner suction hose | 18. | Engine cover |
| [C]: | View: [c] | 9. | Air cleaner bracket | 19. | To engine |
| [D]: | View: [d] | 10. | Hose clamp | 20. | To intercooler outlet pipe |
| 1. | Air cleaner assembly | 11. | O-ring | 21. | EGR-2 valve |
 2. |
MAF sensor with IAT sensor -1 : Align arrow mark (13) of MAF sensor with IAT sensor-1 with protrusions (14) of air cleaner outlet hose. : Direct arrow mark (13) to engine side. |
12. | Left engine mounting |
 : |
2.0 N·m (0.20 kgf-m, 1.5 lbf-ft) |
|
3. |
Air cleaner outlet No.1 hose : Align protrusion (14) of air cleaner outlet No.1 hose with protrusion (14) of pipe. |
13. | Arrow mark |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
|
4. |
Pipe : Align protrusion (14) of pipe with protrusion (14) of air cleaner outlet No.2 hose. |
14. | Protrusion |
 : |
8.5 N·m (0.87 kgf-m, 6.5 lbf-ft) |
|
5. |
Air cleaner outlet No.2 hose : Align groove (16) of air cleaner outlet No.2 hose with protrusion (14) of EGR-2 valve. |
15. | Groove |
 : |
Do not reuse. |
| 6. | Air cleaner suction No.1 pipe | 16. | Engine cover bolt |
