Air Cleaner Filter Removal and Installation

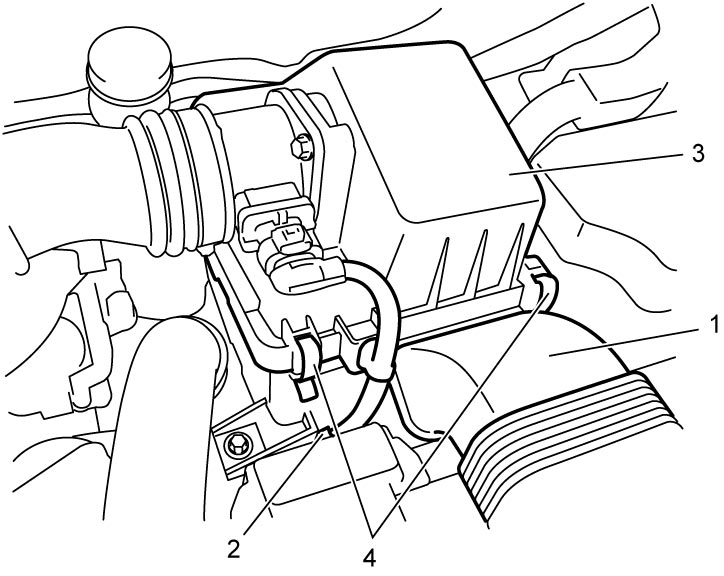

1)Remove air cleaner suction No.2 pipe (1).

2)Remove MAF sensor with IAT sensor-1 harness from air cleaner lower case clamp (2).

3)Open air cleaner upper case (3) by unhooking its clamps (4).

4)Remove air cleaner filter from air cleaner lower case.
