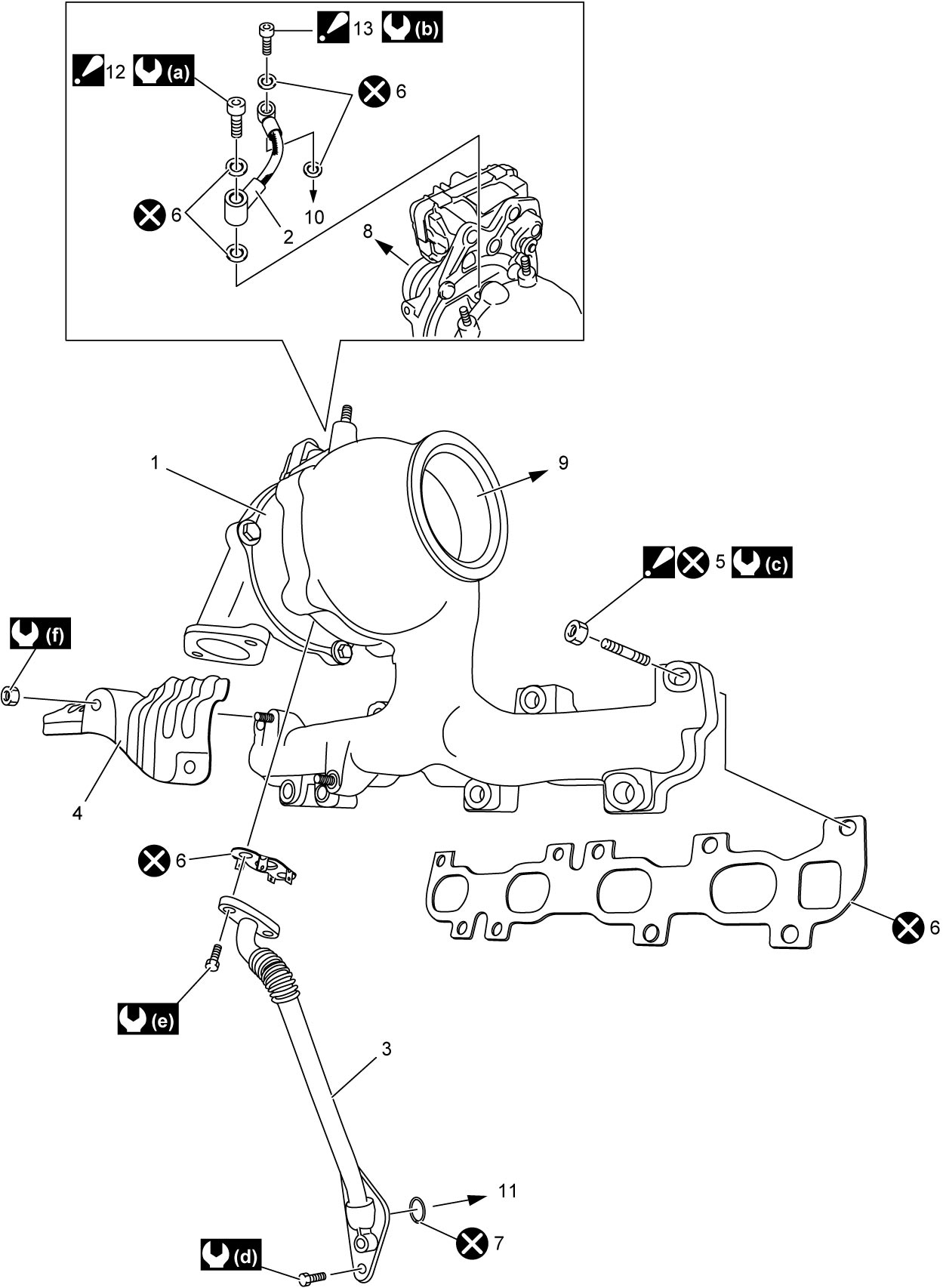

Turbocharger Components
Precautions: General safety (00)
| 1. | Turbocharger with exhaust manifold | 8. | To EGR-2 valve |
 : |
10 N·m → 20 N·m (1.0 kgf-m → 2.0 kgf-m, 7.5 lbf-ft → 15.0 lbf-ft) |
| 2. | Turbocharger lubrication pipe | 9. | To DPF® |
 : |
19 N·m (1.9 kgf-m, 14.0 lbf-ft) |
| 3. | Oil return pipe | 10. | To camshaft housing assembly |
 : |
28 N·m (2.9 kgf-m, 21.0 lbf-ft) |
| 4. | Exhaust manifold cover | 11. | To cylinder block |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
 5. |
Exhaust manifold nut : For tightening order, refer to Turbocharger Removal and Installation:D16AA. |
12. |
Turbocharger lubrication pipe No.1 bolt : For tightening order, Turbocharger Removal and Installation:D16AA. |
 : |
8.5 N·m (0.87 kgf-m, 6.5 lbf-ft) |
| 6. | Gasket |
13. |
Turbocharger lubrication pipe No.2 bolt : For tightening order, Turbocharger Removal and Installation:D16AA. |
 : |
Do not reuse. |
| 7. | O-ring |
 : |
15 N·m → 27 N·m (1.5 kgf-m → 2.8 kgf-m, 11.0 lbf-ft → 20.0 lbf-ft) |
