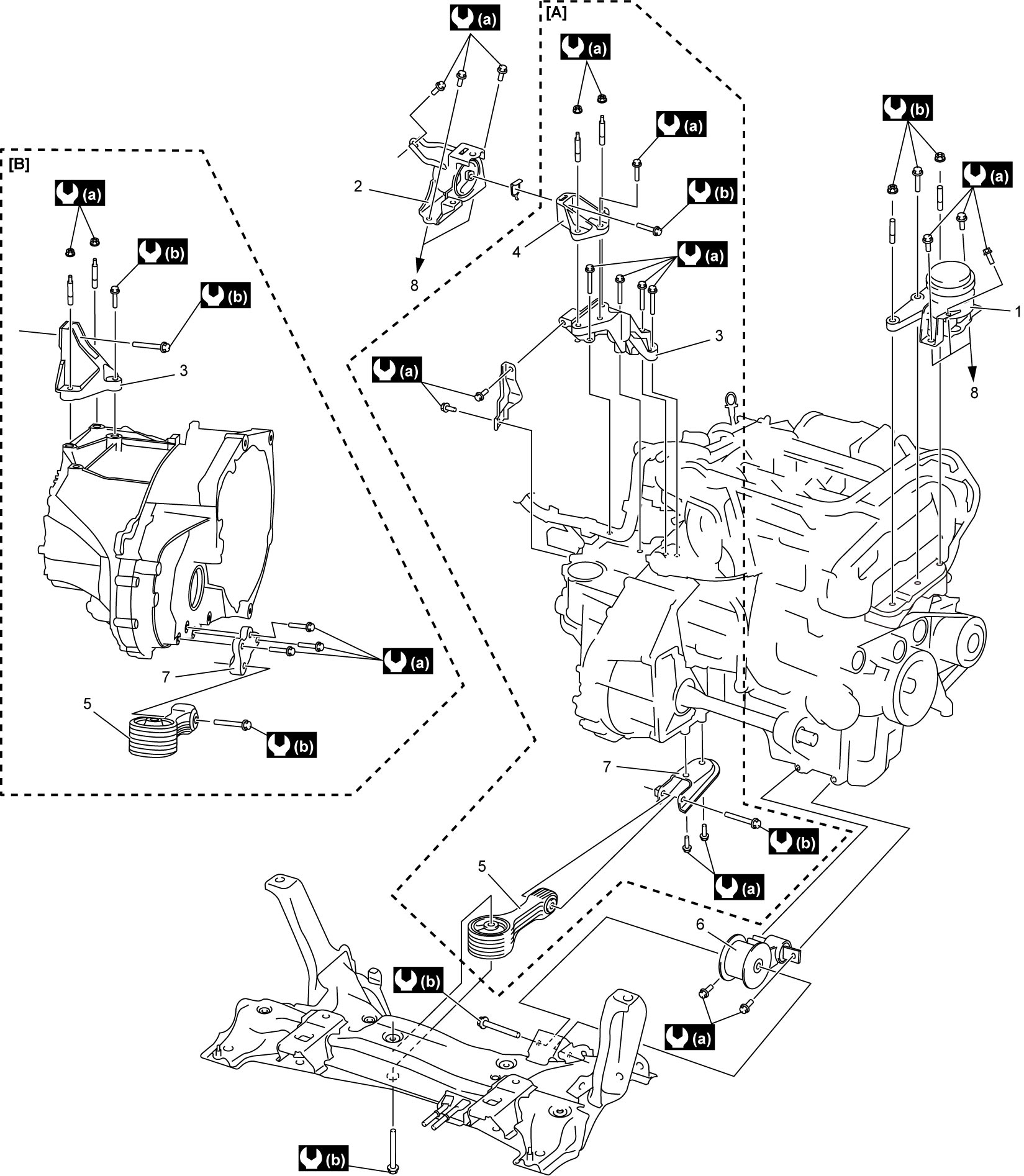

Engine Mounting Components
Precautions: General safety (00)
| [A]: | M/T model | 3. | Engine left mounting No.1 bracket | 7. | Engine torque rod No.1 bracket |
| [B]: | Twin clutch system model | 4. | Engine left mounting No.2 bracket | 8. | To vehicle body |
| 1. | Engine right mounting | 5. | Engine torque No.1 rod |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
| 2. | Engine left mounting | 6. | Engine torque No.2 rod |
 : |
93 N·m (9.5 kgf-m, 68.5 lbf-ft) |
