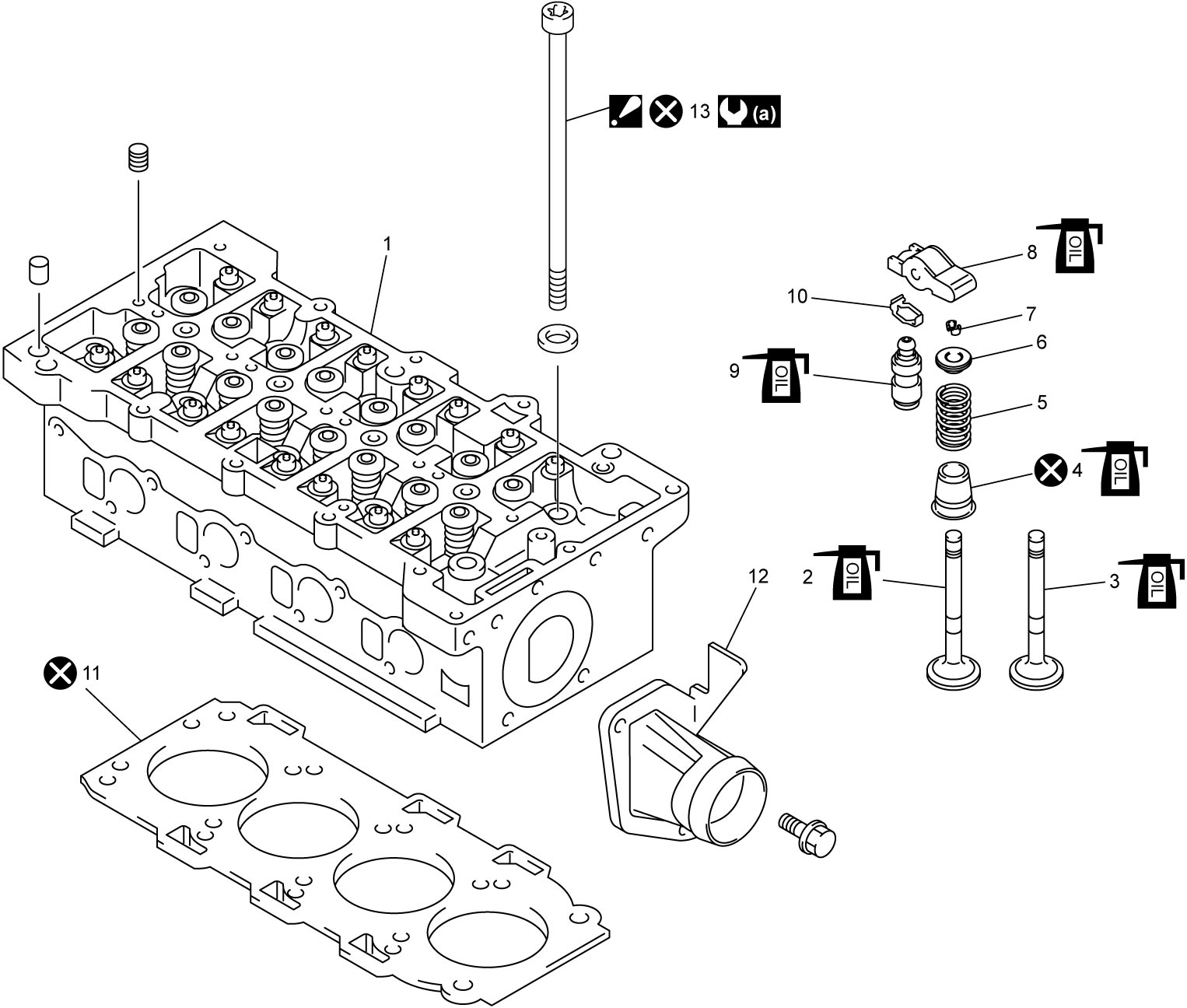

Valve and Cylinder Head Assembly Components

Precautions: General safety (00)

1.	Cylinder head	6.	Valve spring retainer	11.	Gasket
2.	Intake valve : Apply engine oil to sliding surface.	7.	Valve cotter	12.	Water pump return connector
3.	Exhaust valve : Apply engine oil to sliding surface.	8.	Valve rocker arm : Apply engine oil to sliding surface.	13.	Cylinder head bolt : For tightening order, refer to Valve and Cylinder Head Assembly Removal and Installation:D16AA.
4.	Valve stem seal : Apply engine oil to sliding surface.	9.	Valve lash adjuster : Apply engine oil to sliding surface.	:	66 N·m → +90° → +90° → +90° (6.7 kgf-m → +90° → +90° → +90°, 49.0 lbf-ft → +90° → +90° → +90°)
5.	Valve spring	10.	Spring	:	Do not reuse.
