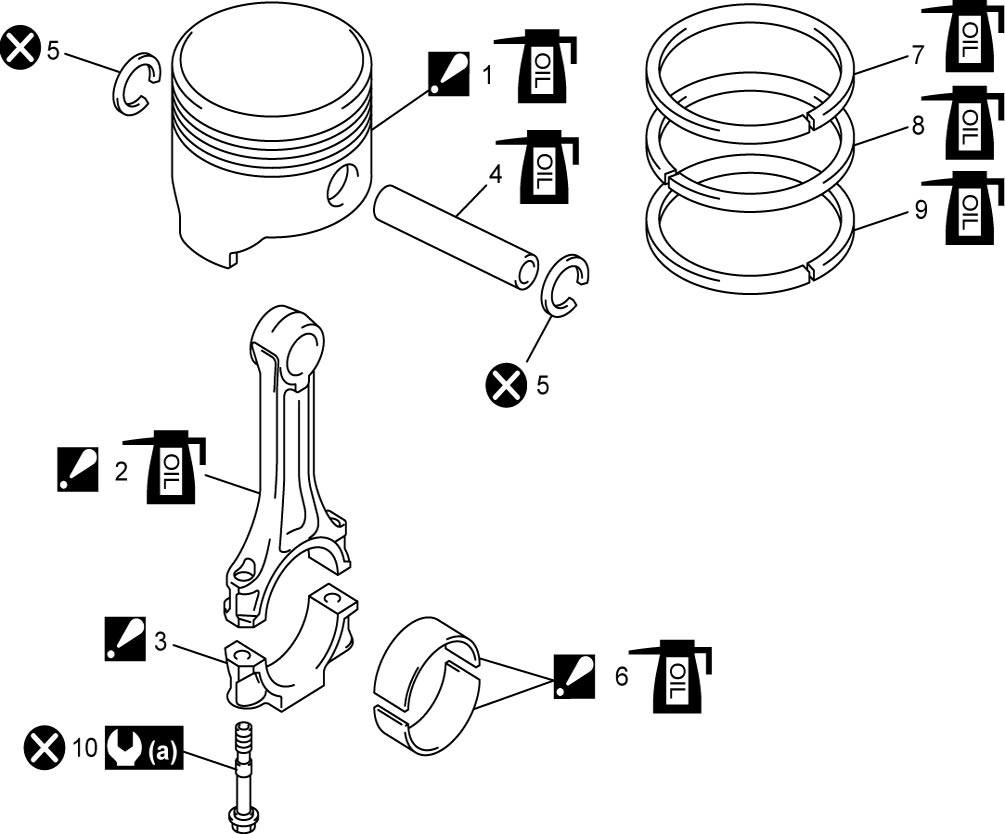

Piston, Piston Ring, Connecting Rod and Cylinder Components
Precautions: General safety (00)
  1. |
Piston : For assembly, refer to Piston, Piston Ring and Connecting Rod Removal and Installation:D16AA. : Apply engine oil to sliding surface. |
5. | Piston pin circlip |
9. |
Oil ring : Apply engine oil to sliding surface. |
|
2. |
Connecting rod : Do not apply engine oil to mating surface between connecting rod bearing and connecting rod. : Apply engine oil to sliding surface. |
6. |
Connecting rod bearing : For applying engine oil, refer to Piston, Piston Ring and Connecting Rod Removal and Installation:D16AA. |
10. | Connecting rod bearing cap bolt |
|
3. |
Connecting rod bearing cap : To install connecting rod bearing cap, direct cylinder number on it to CKP sensor side. : Do not apply engine oil to mating surface between connecting rod bearing and connecting rod bearing cap. |
7. |
1st ring : Apply engine oil to sliding surface. |
 : |
25 N·m → +60° (2.5 kgf-m → +60°, 18.5 lbf-ft → +60°) |
|
4. |
Piston pin : Apply engine oil to sliding surface. |
8. |
2nd ring : Apply engine oil to sliding surface. |
 : |
Do not reuse. |
