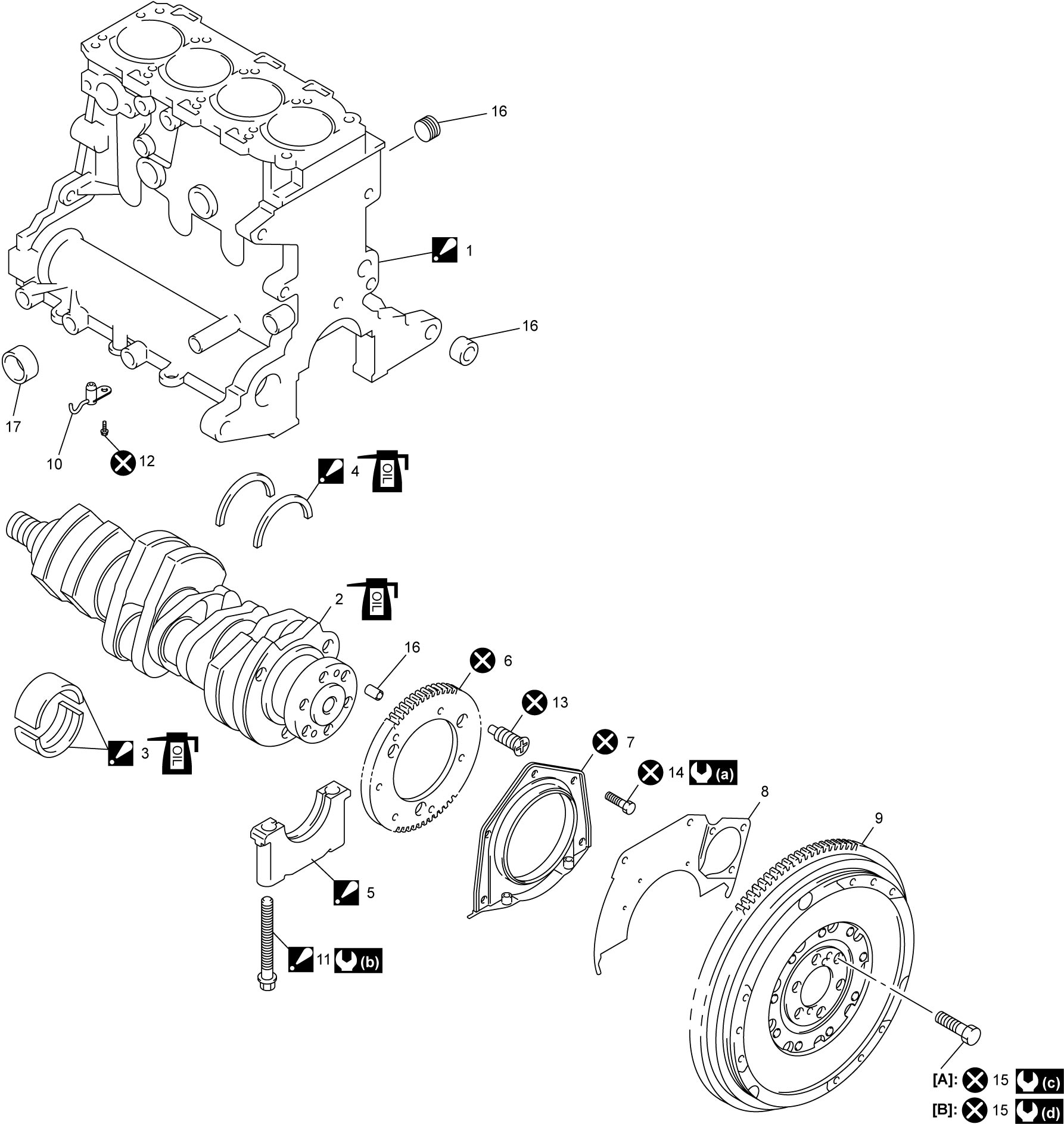

Main Bearing, Crankshaft and Cylinder Block Components

[A]:	M/T model	7.	Rear oil seal housing	15.	Flywheel bolt
[B]:	Twin clutch system model	8.	Clutch housing upper plate	16.	Dowel pin
1.	Cylinder block : Do not apply engine oil to main bearing seating face.	9.	Flywheel	17.	Plug
2.	Crankshaft : Apply engine oil to sliding surface.	10.	Oil jet	:	9.0 N·m (0.92 kgf-m, 7.0 lbf-ft)
3.	Main bearing : For applying engine oil, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:D16AA.	11.	Crankshaft main bearing cap bolt : For tightening order, refer to Main Bearing, Crankshaft and Cylinder Block Removal and Installation:D16AA.	:	25 N·m → +100° (2.5 kgf-m → +100°, 18.5 lbf-ft → +100°)
4.	Thrust bearing : Apply engine oil to sliding surface. : Install thrust bearing with oil grooves facing outside.	12.	Oil jet bolt	:	160 N·m (16.3 kgf-m, 118.0 lbf-ft)
5.	Main bearing cap : Do not apply engine oil to main bearing seating face.	13.	CKP sensor ring bolt	:	20 N·m → +50° (2.0 kgf-m → +50°, 15.0 lbf-ft → +50°)
6.	CKP sensor ring	14.	Rear oil seal housing bolt	:	Do not reuse.
