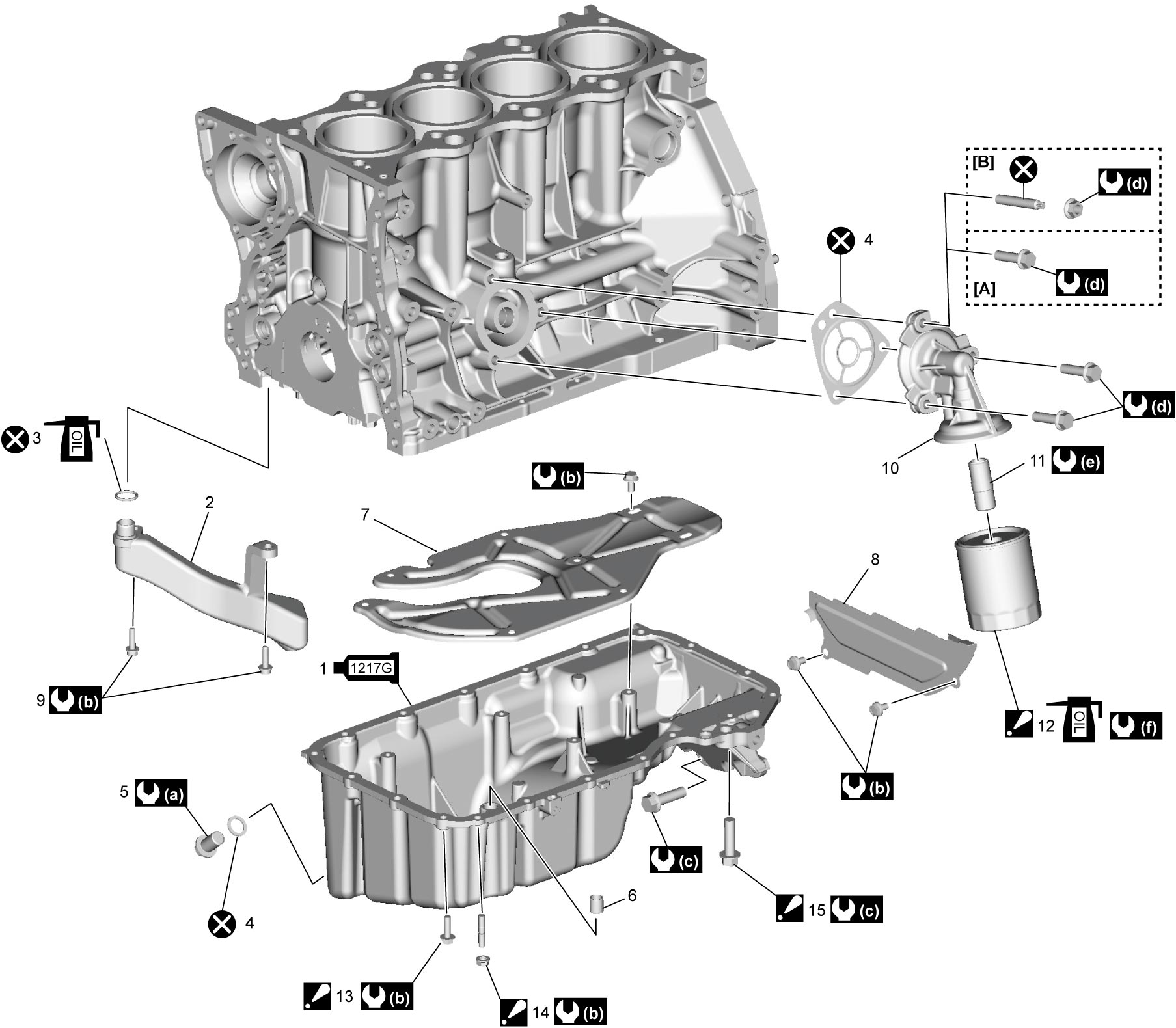

Oil Pan and Oil Pump Strainer Components
Precautions: General safety (00)
| [A]: | Type A | 7. | Oil pan baffle plate |
 15. |
Oil pan bolt (M10) : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:M16A. |
| [B]: | Type B | 8. | Clutch housing lower plate |
 : |
35 N·m (3.6 kgf-m, 26.0 lbf-ft) |
 1. |
Oil pan : Apply sealant 99000-31260 to mating surface. |
9. | Oil pump strainer bolt |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 2. | Oil pump strainer | 10. | Oil filter adapter case |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
 3. |
O-ring : Apply engine oil. |
11. | Oil filter stand |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 4. | Gasket |
12. |
Oil filter : For tightening order, refer to Engine Oil and Filter Change:M16A. : Apply engine oil to gasket. |
 : |
22 N·m (2.2 kgf-m, 16.5 lbf-ft) |
| 5. | Drain plug |
13. |
Oil pan bolt (M6) : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:M16A. |
 : |
14 N·m (1.4 kgf-m, 10.5 lbf-ft) |
| 6. | Dowel pin |
14. |
Oil pan nut : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:M16A. |
 : |
Do not reuse. |
