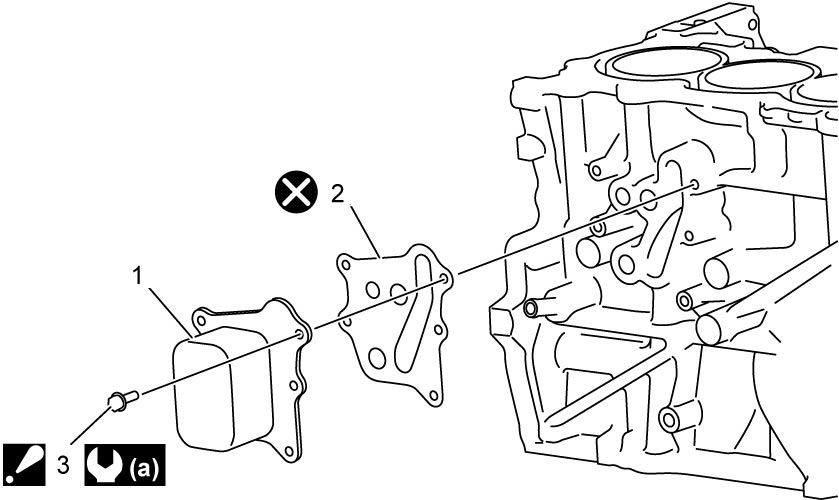

Oil Cooler Components
Precautions: General safety (00)
| 1. | Oil cooler |
| 2. | Gasket |
 3. |
Oil cooler bolt : For tightening order, refer to Oil Cooler Removal and Installation:K14C. |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
 : |
Do not reuse. |
Precautions: General safety (00)
| 1. | Oil cooler |
| 2. | Gasket |
|
3. |
Oil cooler bolt : For tightening order, refer to Oil Cooler Removal and Installation:K14C. |
|
: |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
|
: |
Do not reuse. |
