Oil Cooler Removal and Installation

1)Drain coolant.

2)Remove turbocharger.

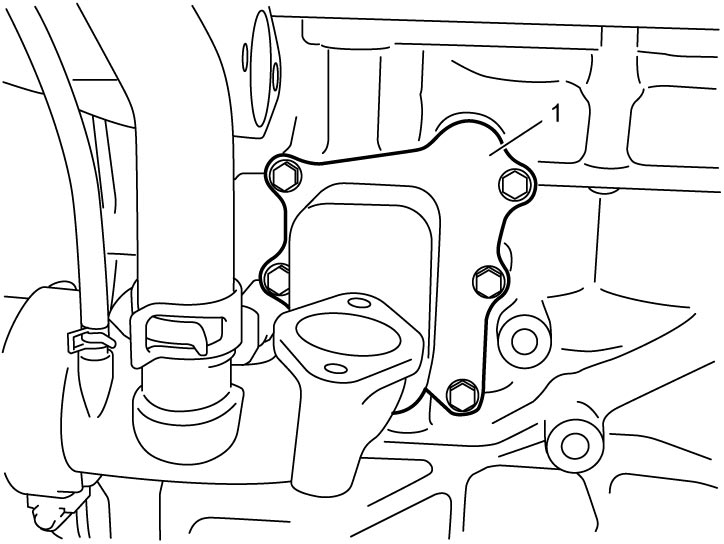

3)Remove oil cooler (1) and oil cooler gasket.

1)Clean mating surface of cylinder block and oil cooler removing oil and coolant thoroughly.

2)Install oil cooler (1) with new gasket.

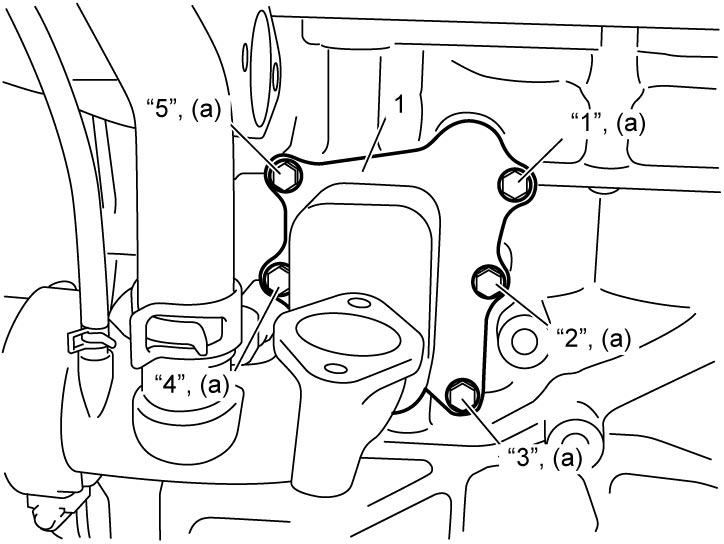

3)Tighten oil cooler bolts as follows.

4)Install turbocharger.

5)Refill cooling system with coolant.

6)Check cooling system for leakage.

7)Check engine oil level.

8)Start engine and check that there is no leakage of engine oil and coolant.
