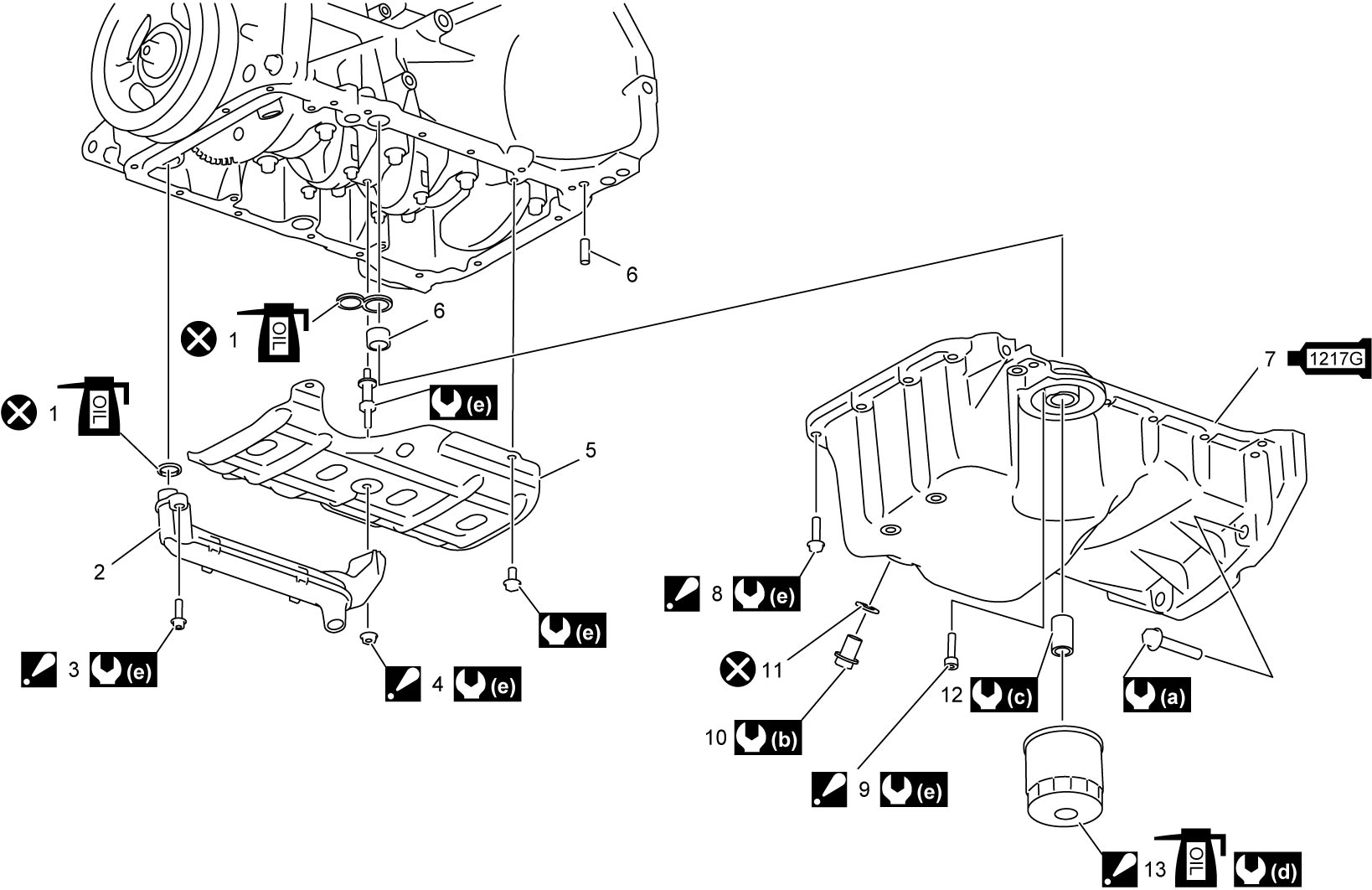

Oil Pan and Oil Pump Strainer Components
Precautions: General safety (00)
 1. |
O-ring : Apply engine oil. |
 8. |
Oil pan bolt No.1 : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:K14C. |
 : |
35 N·m (3.6 kgf-m, 26.0 lbf-ft) |
| 2. | Oil pump strainer |
9. |
Oil pan bolt No.2 : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:K14C. |
 : |
18 N·m (1.8 kgf-m, 13.5 lbf-ft) |
|
3. |
Oil pump strainer bolt : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:K14C. |
10. | Drain plug |
 : |
14 N·m (1.4 kgf-m, 10.5 lbf-ft) |
|
4. |
Oil pan baffle plate nut : For tightening order, refer to Oil Pan and Oil Pump Strainer Removal and Installation:K14C. |
11. | Gasket |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 5. | Oil pan baffle plate | 12. | Oil filter stand |
 : |
Do not reuse. |
| 6. | Dowel pin |
13. |
Oil filter : For tightening procedure, refer to Engine Oil and Filter Change:K14C. : Apply engine oil to oil filter gasket. |
||
 7. |
Oil pan : Apply sealant 99000-31260 to mating surface. |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
