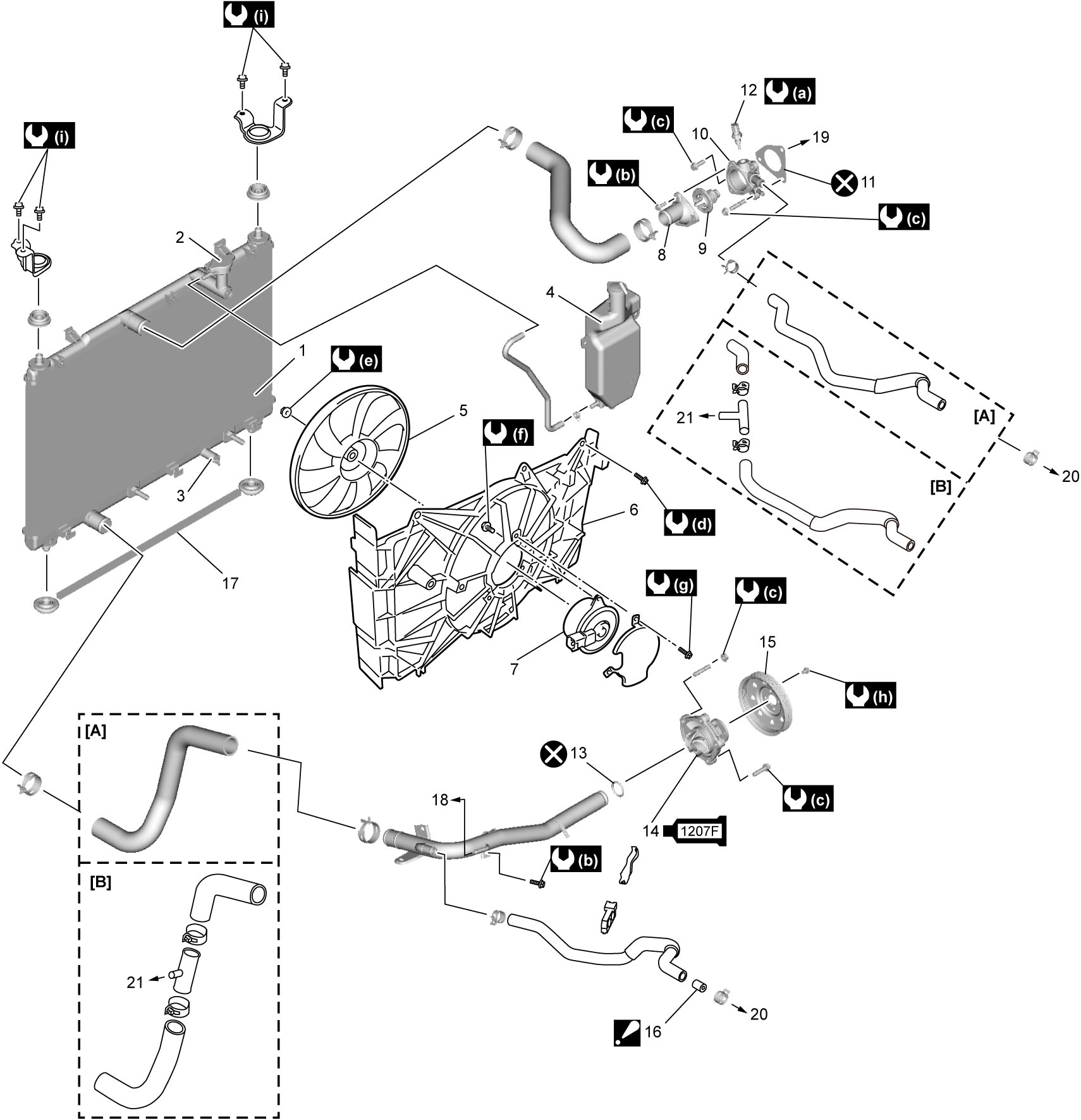

Cooling System Components
Precautions: Precautions for Cooling System · General safety (00)
| [A]: | M/T model | 10. | Thermostat case | 21. | To ATF cooler |
| [B]: | A/T model | 11. | Gasket |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 1. | Radiator | 12. | ECT sensor |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 2. | Radiator cap | 13. | O-ring |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 3. | Drain plug |
 14. |
Water pump : Apply sealant 99000-31250 referring to Water Pump Removal and Installation:M16A. |
 : |
7.1 N·m (0.72 kgf-m, 5.5 lbf-ft) |
| 4. | Reservoir | 15. | Water pump pulley |
 : |
6.3 N·m (0.64 kgf-m, 5.0 lbf-ft) |
| 5. | Radiator cooling fan |
 16. |
Spacer : Insert it 30 mm (1.1 in.) from the hose end. |
 : |
3.9 N·m (0.40 kgf-m, 3.0 lbf-ft) |
| 6. | Radiator cooling fan shroud | 17. | Radiator seal |
 : |
2.6 N·m (0.27 kgf-m, 2.0 lbf-ft) |
| 7. | Radiator cooling fan motor | 18. | To throttle body |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
| 8. | Thermostat cap | 19. | To cylinder head |
 : |
12 N·m (1.2 kgf-m, 9.0 lbf-ft) |
| 9. | Thermostat | 20. | To heater core |
 : |
Do not reuse. |
