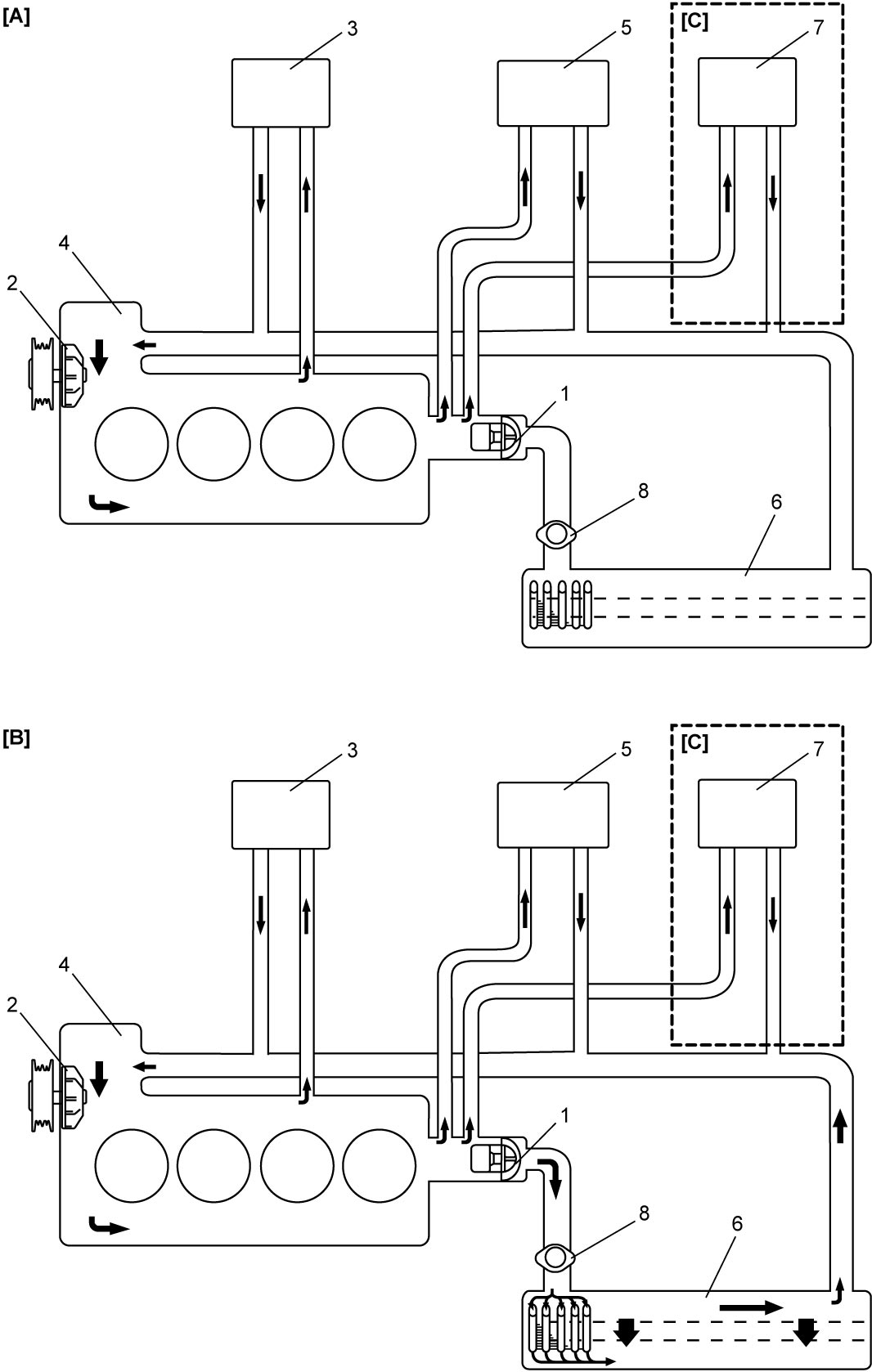

Coolant Circulation
Precautions: Precautions for Cooling System · General safety (00)
| [A]: | Engine is cool (thermostat closed) | 2. | Water pump | 6. | Radiator |
| [B]: | Engine is normal at operating temperature (thermostat open) | 3. | Turbocharger | 7. | ATF cooler |
| [C]: | A/T model | 4. | Engine | 8. | Radiator cap |
| 1. | Thermostat | 5. | Heater core |
