Radiator Cooling Fan Disassembly and Reassembly

Precautions: Precautions for Cooling System · General safety (00)

Reference: Radiator Cooling Fan Assembly Removal and Installation:K14C

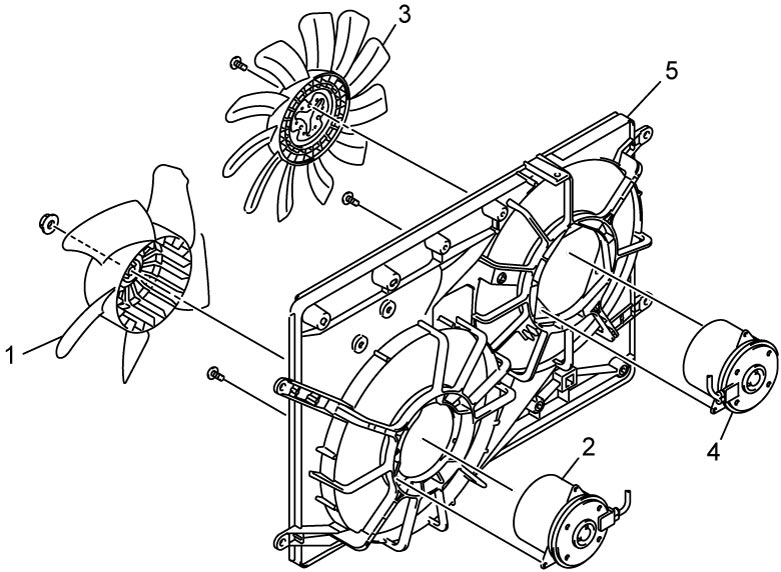

Disassembly

1)Remove radiator cooling main fan (1) from radiator cooling main fan motor (2).

2)Remove radiator cooling sub fan (3) from radiator cooling sub fan motor (4).

3)Remove radiator cooling main fan motor and radiator cooling sub fan motor from radiator cooling fan shroud (5).

Reassembly

Reverse disassembly procedure noting the following point.

•Tighten each bolts and nut to specified torque.

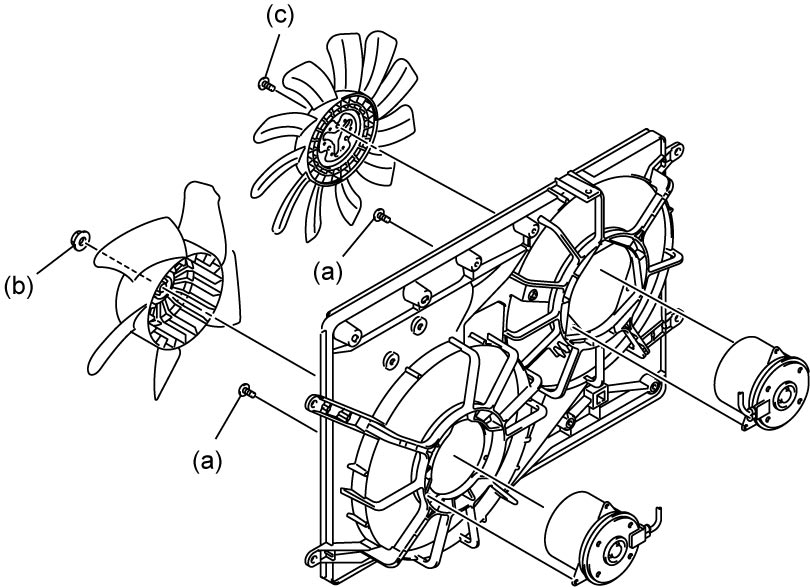

Tightening torque

Radiator cooling fan motor bolt (a): 3.9 N·m (0.40 kgf-m, 3.0 lbf-ft)
Radiator cooling fan nut (b): 6.3 N·m (0.64 kgf-m, 5.0 lbf-ft)
Radiator cooling fan bolt (c): 6.3 N·m (0.64 kgf-m, 5.0 lbf-ft)
