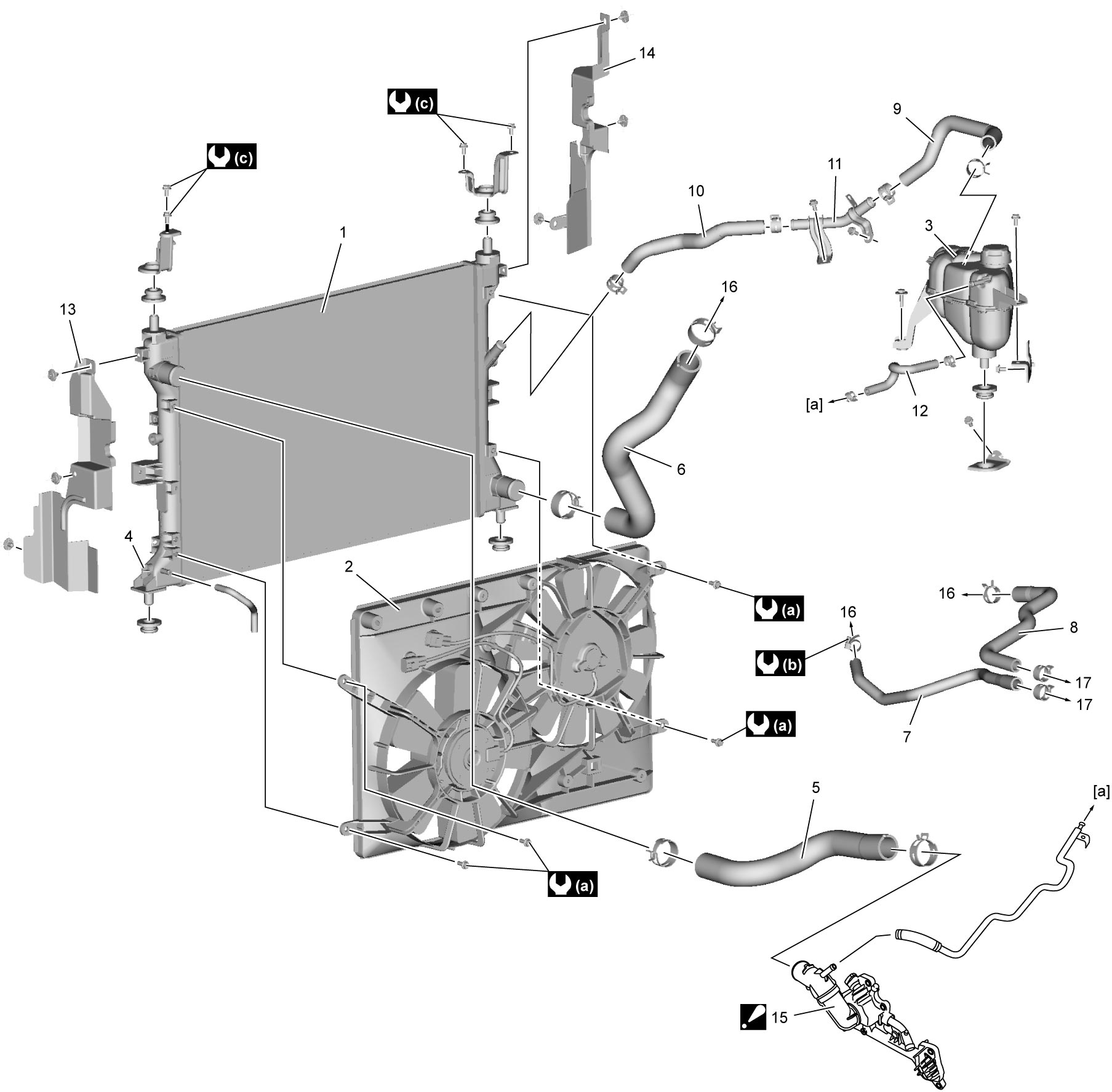

Cooling System Components
Precautions: Precautions for Cooling System · General safety (00)
| 1. | Radiator | 8. | Heater outlet hose |
 15. |
Thermostat : Do not disassemble. |
| 2. | Radiator cooling fan assembly | 9. | Degassing tank outlet No.1 hose | 16. | To engine |
| 3. | Degassing tank | 10. | Degassing tank outlet No.2 hose | 17. | To heater |
| 4. | Drain plug | 11. | Degassing tank outlet pipe |
 : |
7.1 N·m (0.7 kgf-m, 5.5 lbf-ft) |
| 5. | Radiator inlet hose | 12. | Degassing tank inlet hose |
 : |
1.8 N·m (0.18 kgf-m, 1.5 lbf-ft) |
| 6. | Radiator outlet hose | 13. | Left side intercooler shroud |
 : |
12 N·m (1.2 kgf-m, 9.0 lbf-ft) |
| 7. | Heater inlet hose | 14. | Right side intercooler shroud |
