Radiator Cooling Fan Assembly Removal and Installation
Precautions: Precautions for Cooling System · General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove radiator.

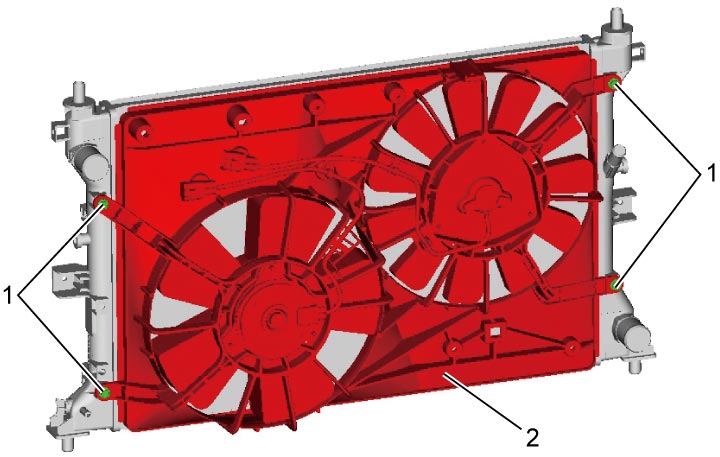

3)Remove cooling fan mounting bolts (1) and then remove radiator cooling fan assembly (2).
Installation
Reverse removal procedure noting the following points.
