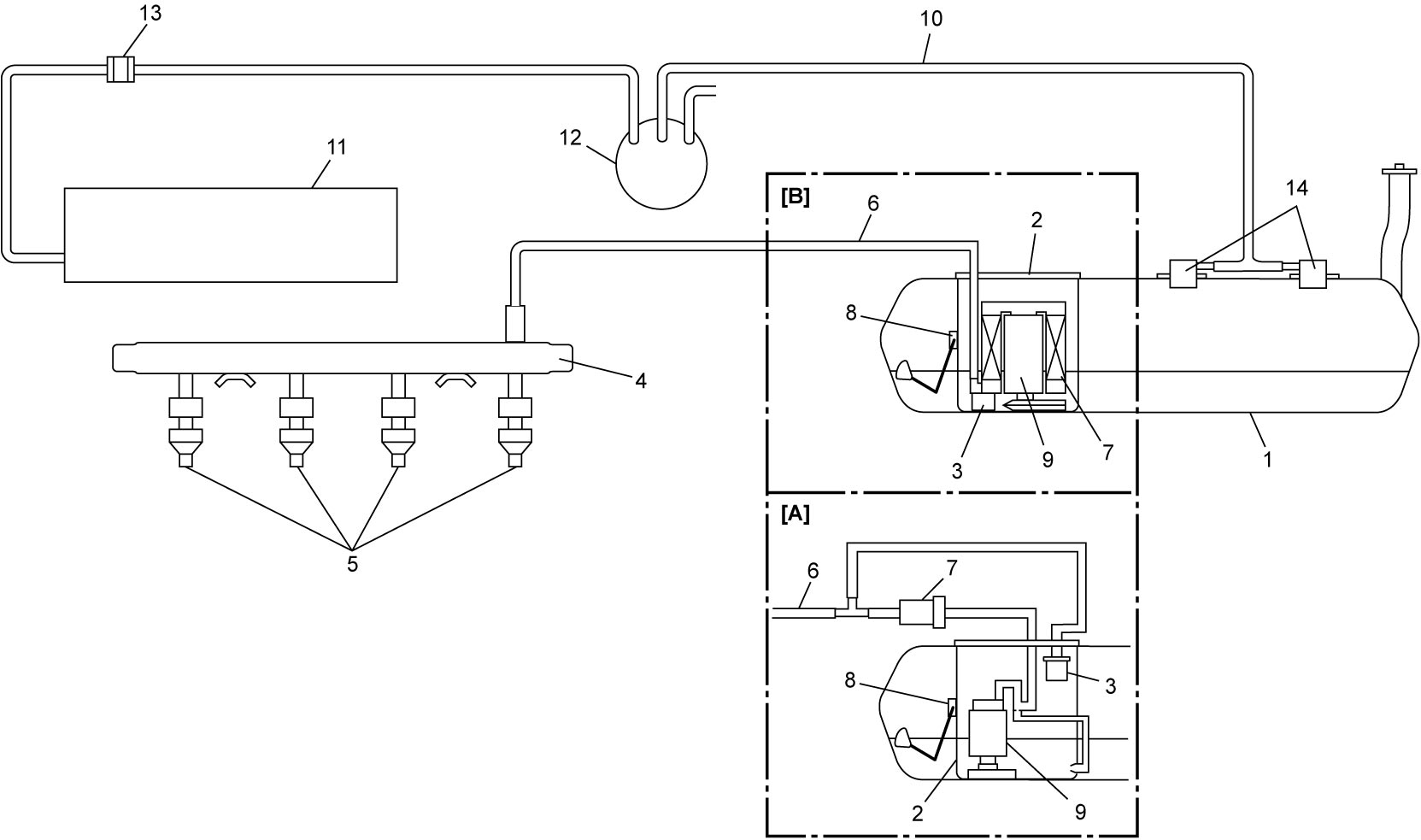

Fuel Delivery System Diagram

Precautions: Precautions for Fuel System Service · General safety (00)

[A]:	Market code P37	5.	Fuel injector	11.	Intake manifold
[B]:	Except P37	6.	Fuel feed line	12.	EVAP canister
1.	Fuel tank	7.	Fuel filter	13.	EVAP canister purge valve
2.	Fuel pump assembly	8.	Fuel level sensor	14.	Fuel cut valve
3.	Fuel pressure regulator	9.	Fuel pump
4.	Fuel delivery pipe	10.	Fuel vapor line
