Fuel Injector Control System Circuit Diagram
Precautions: Precautions for Fuel System Service · General safety (00)

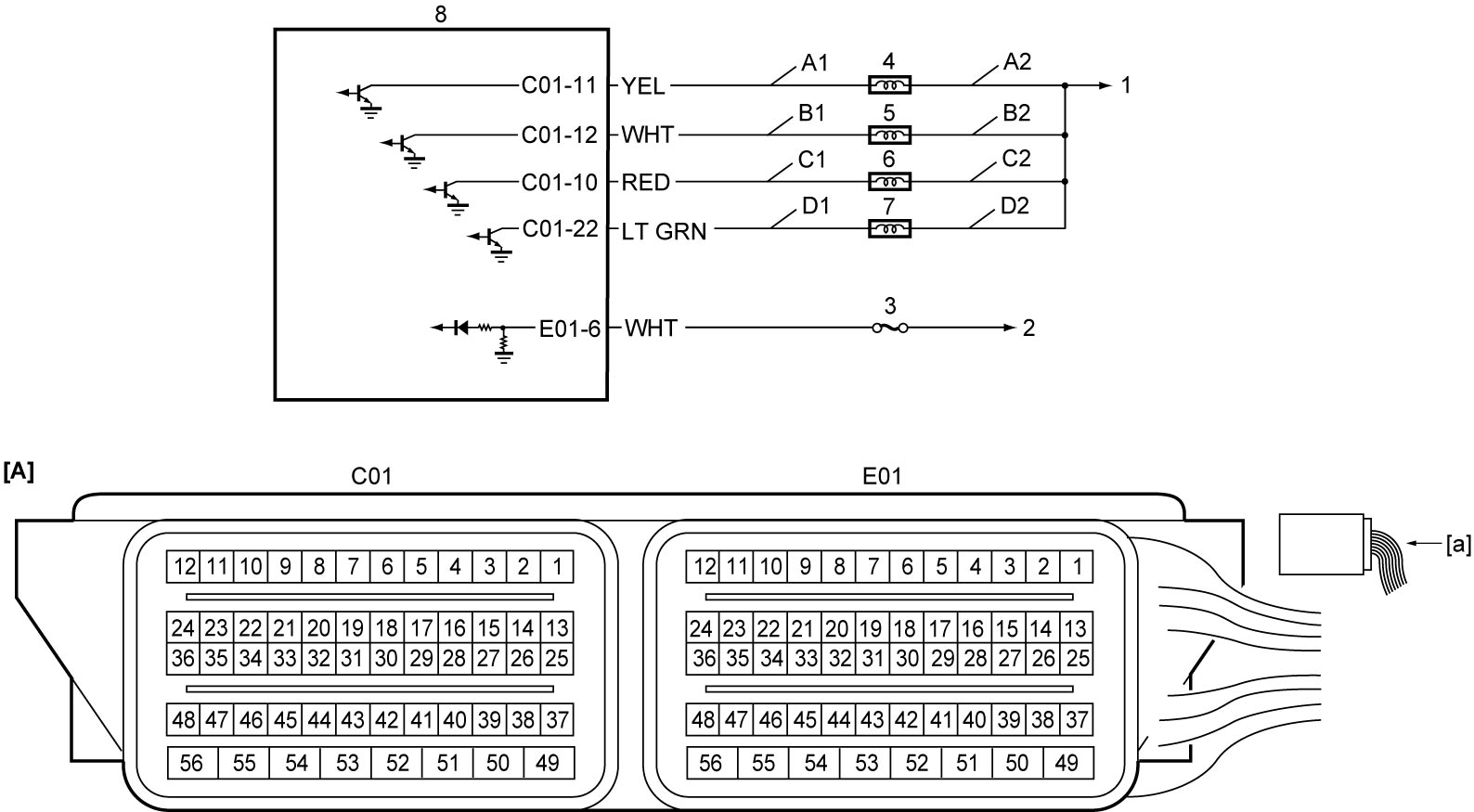

| [A]: | ECM connector (View: [a]) | C2: | Fuel injector No.3 power supply circuit | 4. | Fuel injector No.1 |
| A1: | Fuel injector No.1 drive circuit | D1: | Fuel injector No.4 drive circuit | 5. | Fuel injector No.2 |
| A2: | Fuel injector No.1 power supply circuit | D2: | Fuel injector No.4 power supply circuit | 6. | Fuel injector No.3 |
| B1: | Fuel injector No.2 drive circuit | 1. | To main relay | 7. | Fuel injector No.4 |
| B2: | Fuel injector No.2 power supply circuit | 2. | To ignition switch (ignition switch model) or IG1 relay (keyless push start model) | 8. | ECM |
| C1: | Fuel injector No.3 drive circuit | 3. | “IG COIL” fuse |
