Fuel Filter Removal and Installation (Market Code P37)

Precautions: Precautions for Fuel System Service · General safety (00)

WARNING:

Failure to take proper precautions when reinstalling the fuel tank connections can result in fuel leakage or damage.

Clean the outside surface of the pipe where each quick joint is to be installed, push the pipe into the joint until the joint lock clicks, and then check that the pipe is connected securely.

NOTE:

For discrimination of market code, refer to Identification Plate.

Removal

1)Remove fuel tank from vehicle.

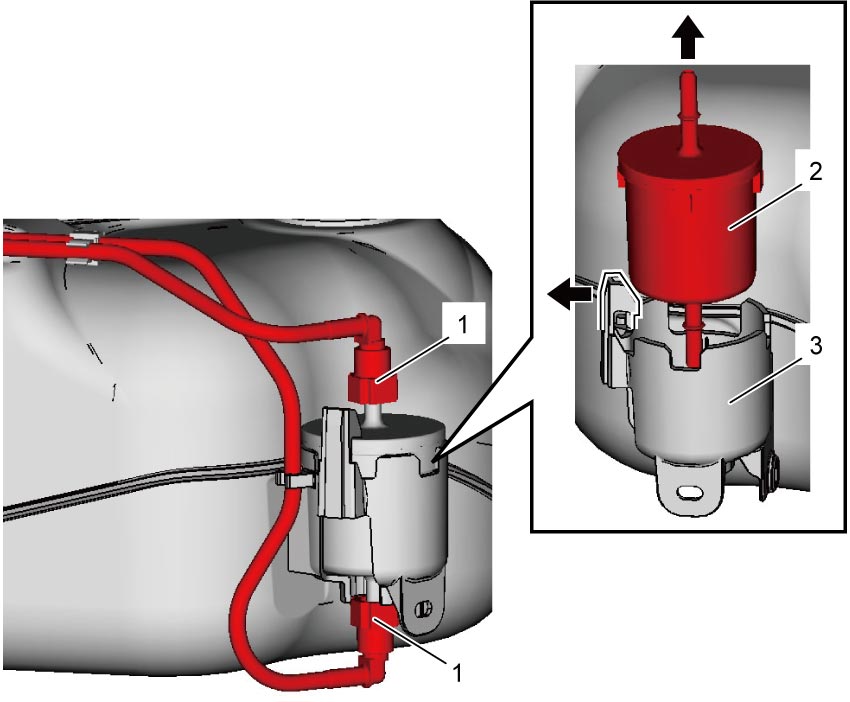

2)Disconnect quick joints (1) from fuel filter.

3)Remove fuel filter (2) from its bracket (3).

Installation

Reverse removal procedure.
