Fuel Pump Description
Precautions: Precautions for Fuel System Service · General safety (00)
The fuel pump (1) is an in-tank type electric pump. Incorporated in the pump assembly are;
fuel pump filter (except P37) (2), fuel filter (3), fuel pressure regulator (4) and fuel level sensor (5).

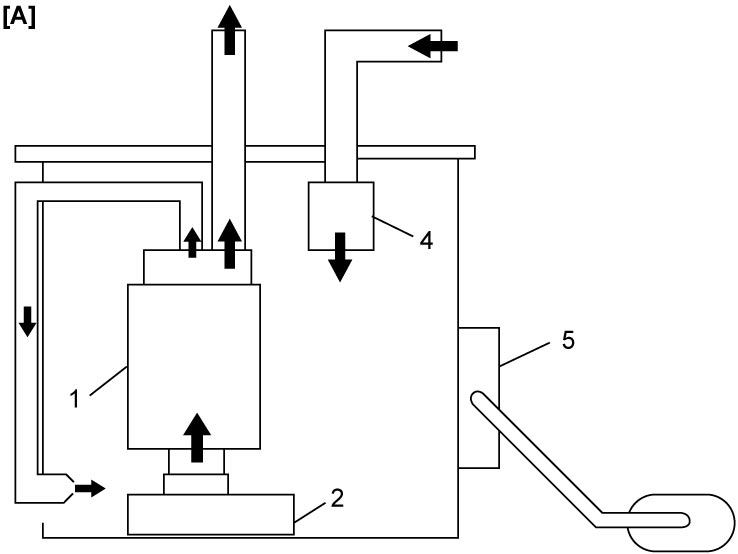

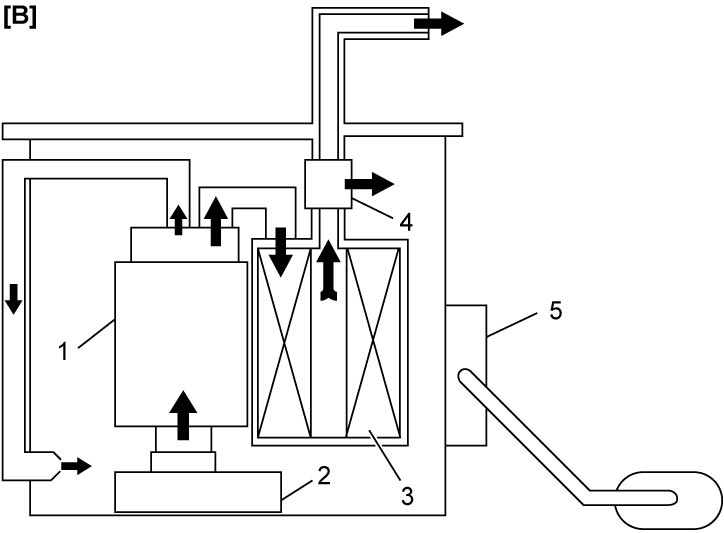

| [A]: | Market code P37 | [B]: | Except P37 |
