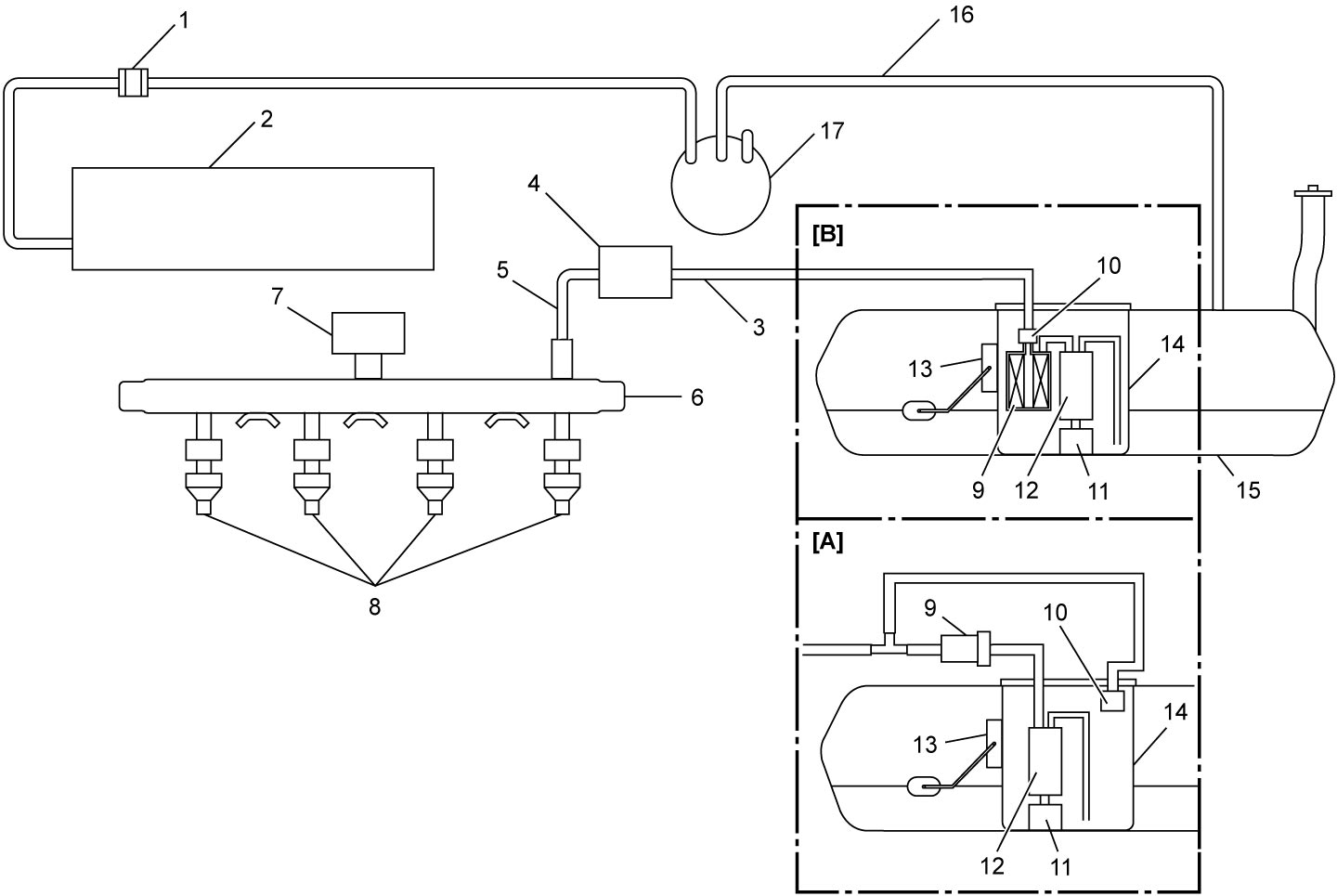

Fuel Delivery System Diagram
Precautions: Precautions for Fuel System Service · General safety (00)
| [A]: | Market code P37 | 6. | Fuel delivery pipe | 13. | Fuel level sensor |
| [B]: | Except P37 | 7. | Fuel pressure sensor | 14. | Fuel pump assembly |
| 1. | EVAP canister purge valve | 8. | Fuel injector | 15. | Fuel tank |
| 2. | Intake manifold | 9. | Fuel filter | 16. | Fuel vapor line |
| 3. | Fuel feed line | 10. | Fuel pressure regulator | 17. | EVAP canister |
| 4. | High pressure fuel pump | 11. | Fuel pump filter | ||
| 5. | High pressure pipe | 12. | Fuel pump |
