Fuel Injector Control System Circuit Diagram
Precautions: Precautions for Fuel System Service · General safety (00)

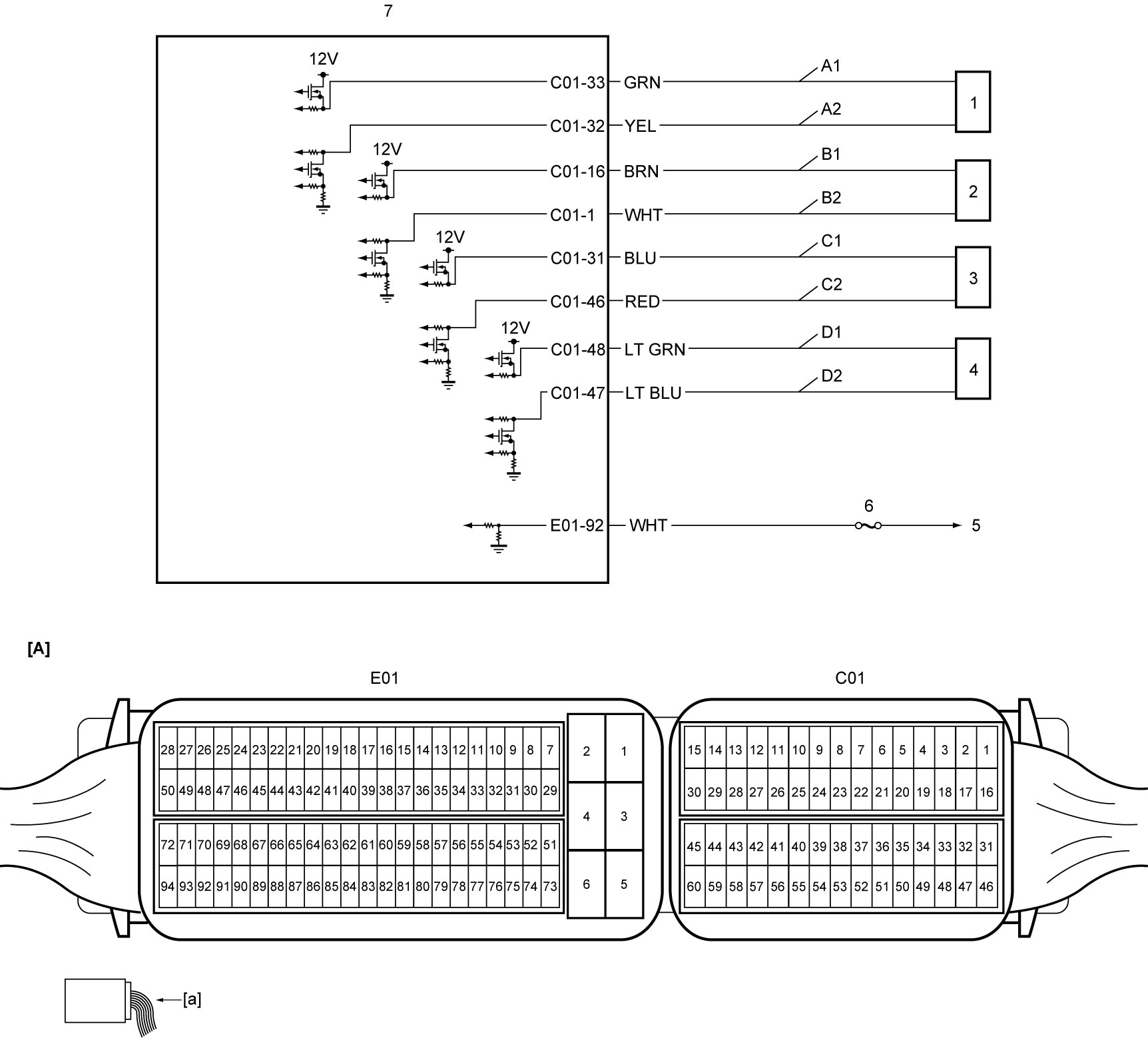

| [A]: | ECM connector (View: [a]) | C2: | Fuel injector No.3 drive circuit (low side) | 4. | Fuel injector No.4 |
| A1: | Fuel injector No.1 drive circuit (high side) | D1: | Fuel injector No.4 drive circuit (high side) | 5. | To IG1 relay |
| A2: | Fuel injector No.1 drive circuit (low side) | D2: | Fuel injector No.4 drive circuit (low side) | 6. | “IG COIL” fuse |
| B1: | Fuel injector No.2 drive circuit (high side) | 1. | Fuel injector No.1 | 7. | ECM |
| B2: | Fuel injector No.2 drive circuit (low side) | 2. | Fuel injector No.2 | ||
| C1: | Fuel injector No.3 drive circuit (high side) | 3. | Fuel injector No.3 |
