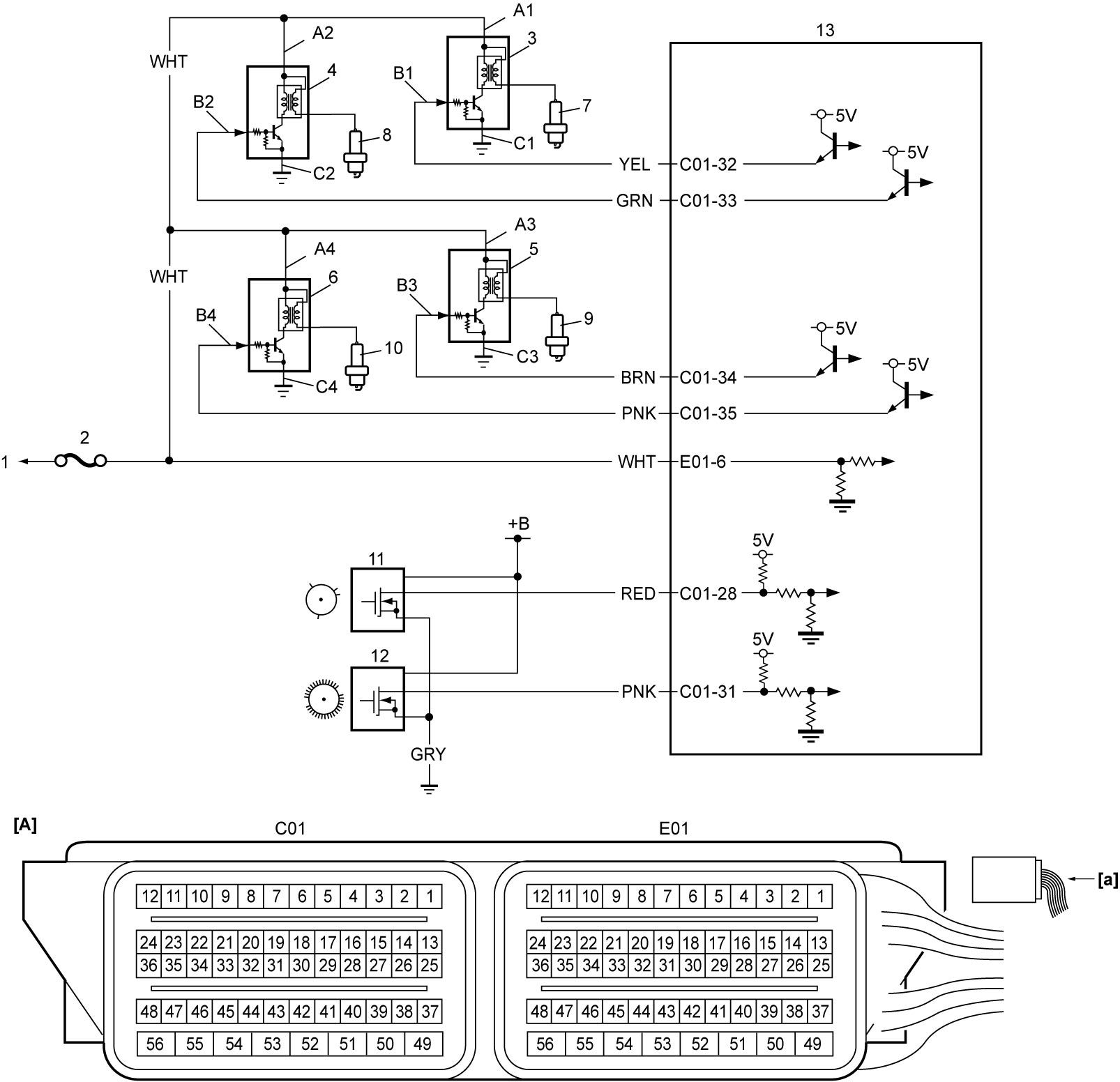

Ignition System Circuit Diagram
Precautions: General safety (00)
| [A]: | ECM connector (View: [a]) | 3. | Ignition coil assembly No.1 | 9. | Spark plug No.3 |
| A1 – A4: | Ignition coil assembly power supply circuits | 4. | Ignition coil assembly No.2 | 10. | Spark plug No.4 |
| B1 – B4: | Ignition coil assembly drive circuits | 5. | Ignition coil assembly No.3 | 11. | CMP sensor |
| C1 – C4: | Ignition coil assembly ground circuits | 6. | Ignition coil assembly No.4 | 12. | CKP sensor |
| 1. | To ignition switch (ignition switch model) or IG1 relay (keyless push start model) | 7. | Spark plug No.1 | 13. | ECM |
| 2. | “IG COIL” fuse | 8. | Spark plug No.2 |
