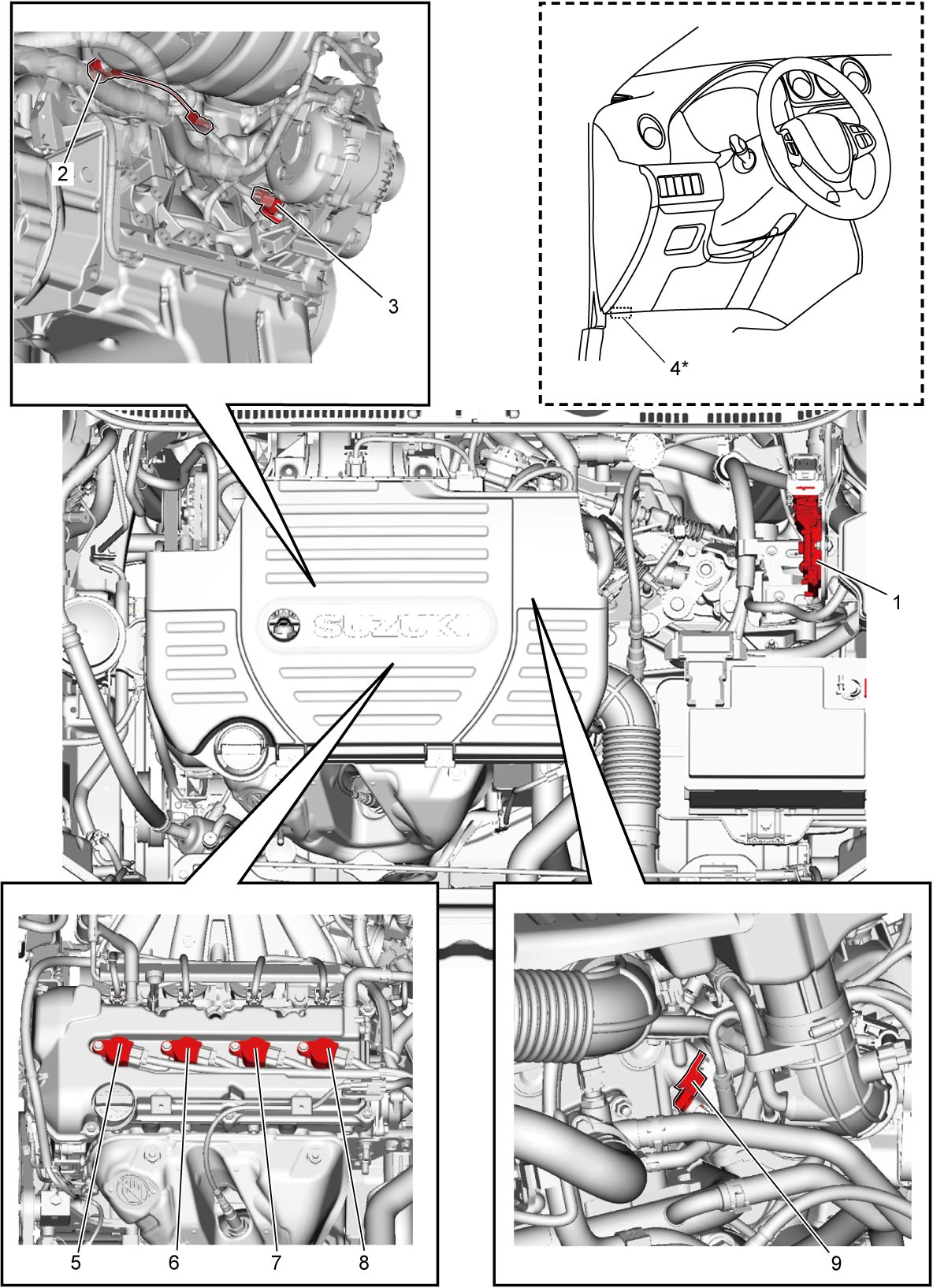

Ignition System Component Location
Precautions: General safety (00)
NOTE:
The figure shows LHD. For RHD, part with (*) is installed in symmetrically opposite location.
| 1. | ECM | 4. | DLC | 7. | Ignition coil assembly No.3 |
| 2. | Knock sensor | 5. | Ignition coil assembly No.1 | 8. | Ignition coil assembly No.4 |
| 3. | CKP sensor | 6. | Ignition coil assembly No.2 | 9. | CMP sensor |
