Ignition Coil Assembly Removal and Installation

1)Disconnect negative (–) cable at battery.

2)Remove air cleaner assembly.

3)Disconnect ignition coil connectors.

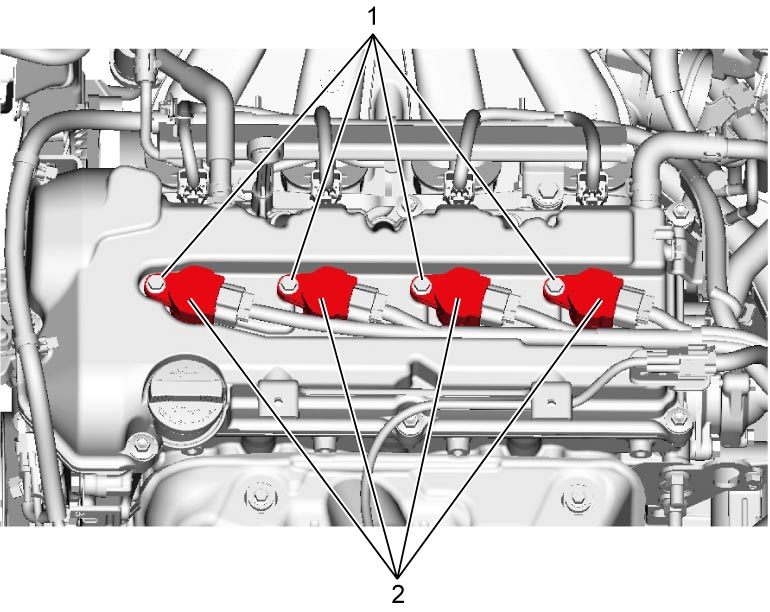

4)Remove ignition coil bolts (1) and then pull out ignition coil assemblies (2).
