Ignition Coil Assembly Removal and Installation
Precautions: General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove air cleaner assembly and air cleaner outlet hose.
3)Disconnect ignition coil connectors.

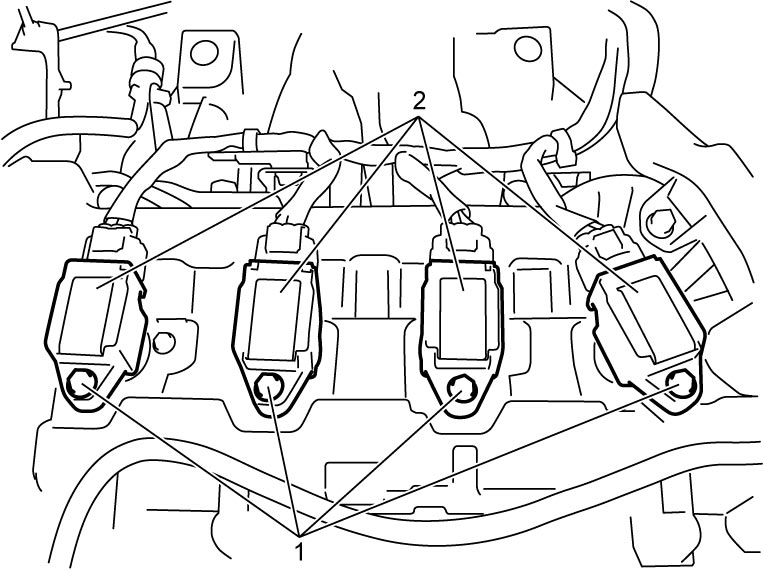

4)Remove ignition coil bolts (1) and then pull out ignition coil assemblies (2).
Installation

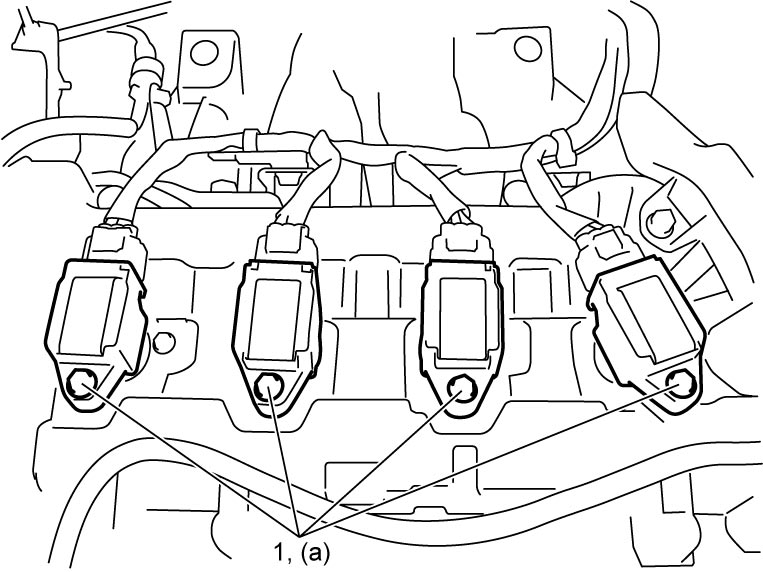

Reverse removal procedure noting the following point.
